The statements that are true regarding Aruba NAE agents are A and C.

A. A single NAE script can be used by multiple NAE agents. This means that you can create different instances of the same script with different parameters or settings.For example, you can use the same script to monitor different VLANs or interfaces on the switch1.

C. NAE agents will never consume more than 10% of switch processor resources. This is a built-in safeguard that prevents the agents from affecting the switch performance or stability.If an agent exceeds the 10% limit, it will be automatically disabled and an alert will be generated2.

The other options are incorrect because:

B. NAE agents are not active at all times. They can be enabled or disabled by the user, either manually or based on a schedule.They can also be disabled automatically if they encounter an error or exceed the resource limit1.

D. NAE scripts do not need to be reviewed and signed by Aruba before being used. You can create your own custom scripts using Python and upload them to the switch or Aruba Central.You can also use the scripts provided by Aruba or other sources, as long as they are compatible with the switch firmware version1.

E. A single NAE agent cannot be used by multiple NAE scripts. An agent is an instance of a script that runs on the switch.Each agent can only run one script at a time1.

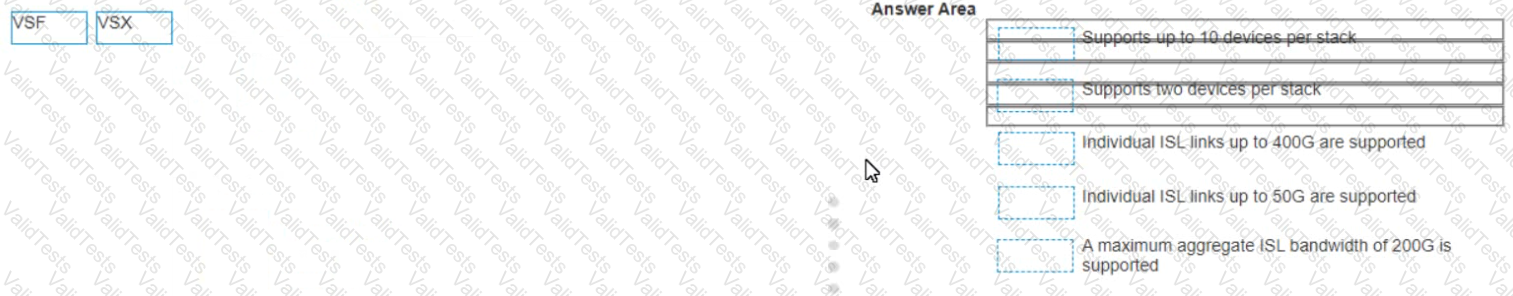

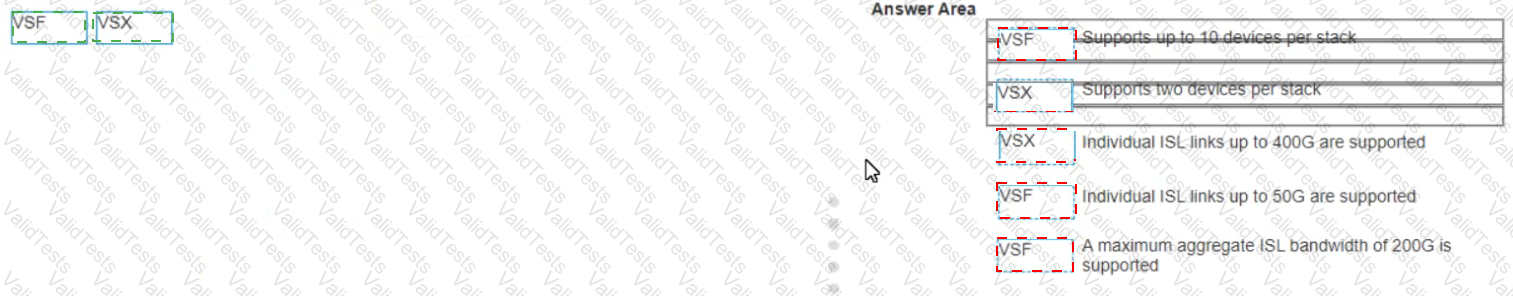

a) Support up to 10 devices per stack -> VSF

b) Support two devices per stack -> VSX

c) Individual ISL links up to 400G are supported -> VSX

d) individual ISL links up to 50G are supported -> VSF

e) A maximum aggregate ISL bandwidth of 200G is supported -> VSF

References: 1 https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/GUID-2E425DAE-EC54-4313-9DEA-A61817F903C0.html

MPSK Local is a feature that can reduce the IT administration overhead associated with deploying devices that do not support 802.1X authentication while maintaining a secure environment. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require manual intervention by the installers or the MPSK gateway, or they do not provide unique pre-shared keys for devices. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch05.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch06.html

A session-based ACL is applied to traffic entering or leaving a port or VLAN based on the direction of the session initiation. To allow ping from any wired station to wireless clients but not vice versa, a session-based ACL should be used to deny icmp echo traffic from any source to any destination, and then permit icmp echo-reply traffic from any source to user destination. The user role represents wireless clients in AOS 10. References: https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-BD3E0A5F-FE4C-4B9B-BE1D-FE7D2B9F8C3A.html https://techhub.hpe.com/eginfolib/networking/docs/arubaos-switch/security/GUID-EA0A5B3C-FE4C-4B9B-BE1D-FE7D2B9F8C3A.html

These are two correct statements regarding OSPFv2 route redistribution for Aruba OS CX switches. Route redistribution is a process that allows routes from one routing protocol or source to be injected into another routing protocol or destination. OSPFv2 is a link-state routing protocol that supports route redistribution from various sources, such as connected, static, BGP, etc. The “redistribute connected” command will redistribute all connected routes for the switch, including local loopback addresses, into OSPFv2. The “redistribute static route-map connected-routes” command will redistribute all static routes that have a matching permit statement in the route map named “connected-routes” into OSPFv2. The other statements are incorrect because they either do not reflect the correct behavior of route redistribution commands or do not exist as valid commands. References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

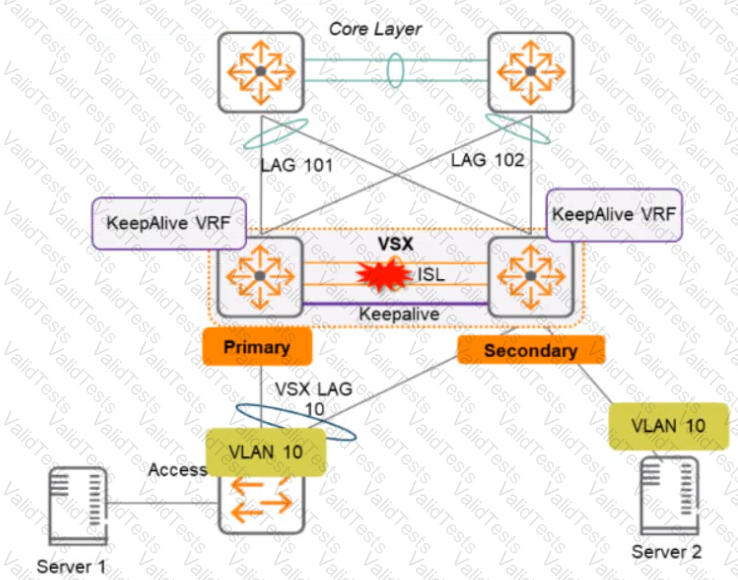

These are the correct statements about access from the servers to the Core when the ISL link between the switches fails, but the keepalive interface functions. Server 1 can access the core layer via both uplinks because it is connected to VSX-A, which is still active for VLAN 10. Server 2 can also access the core layer via its uplink to VSX-B, which is still active for VLAN 10 because of Active Gateway feature. Server 1 and Server 2 can communicate with each other via the core layer because they are in the same VLAN and subnet, and their traffic can be routed through the core switches. The other statements are incorrect because they either describe scenarios thatare not possible or not relevant to the question.References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-

BSS coloring is a mechanism that helps identify the BSS Basic Service Set. A BSS is a set of interconnected stations that can communicate with each other. BSS can be an independent BSS or infrastructure BSS. An independent BSS is an ad hoc network that does not include APs, whereas the infrastructure BSS consists of an AP and all its associated clients. on the same channel and differentiate them from other BSS on the same channel12. Each BSS is assigned a color code, which is a 6-bit value that is carried in the PHY header of the Wi-Fi frames12. By using BSS coloring, the APs and clients can reduce the threshold for interference detection and avoid unnecessary backoff or retransmissions when they detect frames from other BSS with differentcolors12. This can improve the spectral efficiency and throughput of the network12. The other options are incorrect because they do not describe the primary benefit of BSS coloring.

The difference in the noise floor perceived by a client using a bonded 40 MHz wide channel as compared to an unbonded 20 MHz wide channel is 3 dB. The noise floor is the level of background noise in a given frequency band. When two adjacent channels are bonded, the noise floor increases by 3 dB because the bandwidth is doubled and more noise is captured. The other options are incorrect because they do not reflect the correct relationship between bandwidth and noise floor. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/rf-fundamentals.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/channel-bonding.htm

An OSPF transit network is a network that has at least two routers that are connected by a multi-access link and can forward traffic for other networks1.A transit network is different from a stub network, which has only one router connected to it and does not forward traffic for other networks2.A transit network is also different from a virtual link, which is a logical connection between two areas that are not physically adjacent2.A transit network is not necessarily connected to a different routing protocol, althoughit can be if the router performs redistribution2. Therefore, the correct answer is C. A network on which a router discovers at least one neighbor.

The correct answer is A. DMO is configured individually for each SSID in use in the network.

DMO is a feature that allows the AP to convert multicast streams into unicast streams over the wireless link. This enhances the quality and reliability of streaming video, while preserving the bandwidth available to the non-video clients. DMO is configured individually for each SSID in use in the network, as different SSIDs may have different multicast requirements.

According to the Aruba documentConfiguring WLAN Settings for an SSID Profile, one of the steps to configure DMO is:

Dynamic multicast optimization: Select Enabled to allow IAP to convert multicast streams into unicast streams over the wireless link. Enabling Dynamic Multicast Optimization (DMO) enhances the quality and reliability of streaming video, while preserving the bandwidth available to the non-video clients.

The other options are incorrect because:

B. The AP does not use QoS to provide equal air time for multicast traffic. QoS is a feature that prioritizes different types of traffic based on their importance and latency sensitivity. QoS does not affect how multicast streams are transmitted over the wireless link.

C. DMO is not configured globally for each SSID in use in the network. DMO is configured individually for each SSID, as different SSIDs may have different multicast requirements.

D. The controller does not convert multicast streams into unicast streams. The AP does the conversion, as it is closer to the wireless clients and can optimize the transmission based on the client capabilities and channel conditions.
