The correct answer is C. Create a new SVI and use attach command.

To create a new SVI for a separate routing table, you need to use the attach command to associate the SVI with a VRF (Virtual Routing and Forwarding) instance. A VRF is a logical entity that allows multiple routing tables to coexist on the same switch. Each VRF has its own set of interfaces, routing protocols, and routes that are isolated from other VRFs.

According to the AOS-CX Virtual Switching Framework (VSF) Guide1, one of the steps to configure VRF-aware VSF is:

Configure the VRFs on each member switch and assign the SVIs to the respective VRFs using the attach command. For example:

switch(config)# vrf red

switch(config-vrf)# exit

switch(config)# interface vlan 10

switch(config-if-vlan)# ip address 10.1.1.1/24

switch(config-if-vlan)# attach vrf red

The above commands create a VRF named red and assign VLAN 10 SVI to it. The SVI has an IP address of 10.1.1.1/24.

The other options are incorrect because:

A. You cannot attach a VRF to a VLAN directly. You need to create an SVI for the VLAN and then attach the VRF to the SVI.

B. You cannot create a new routing table manually. You need to create a VRF and then use routing protocols or static routes to populate the routing table for the VRF.

D. You cannot attach a routing table to a VLAN directly. You need to create an SVI for the VLAN and then attach a VRF that has a routing table associated with it.

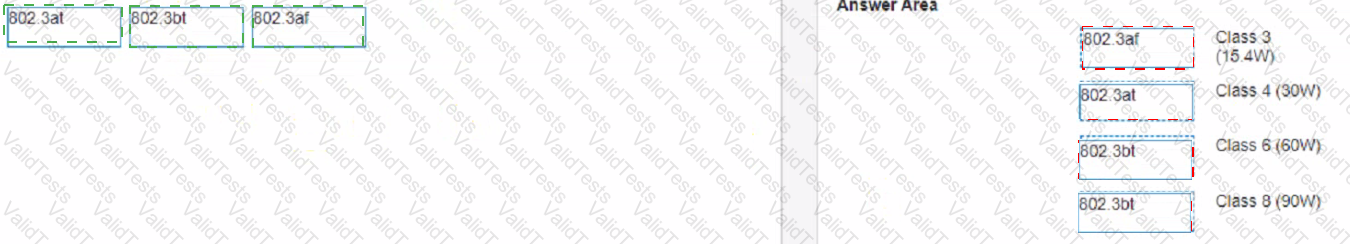

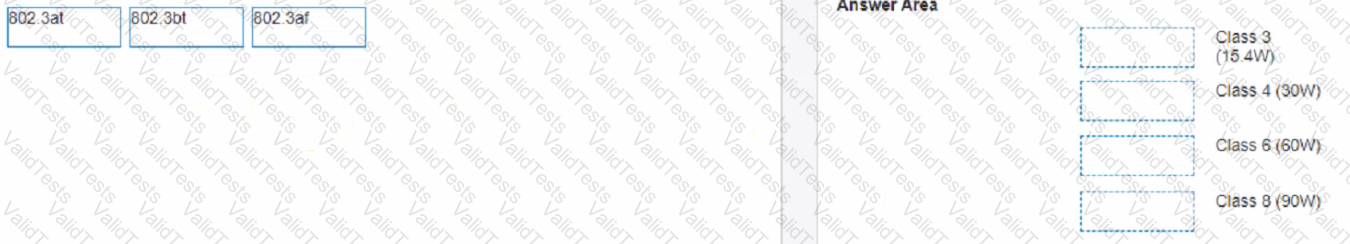

Class 3 (15.4W): 802.3af

Class 4 (30W): 802.3at

Class 6 (60W): 802.3bt

Class 8 (90W): 802.3bt

Client IP address: This factor can be used to determine if the client is on the same VLAN as the AP or not. If the client IP address is on the same VLAN as the AP, then the client traffic is bridged locally. If the client IP address is on a different VLAN than the AP, then the client traffic is forwarded to the gateway cluster through a secure tunnel 12.

Client VLAN: This factor can be used to determine if the client belongs to a specific VLAN or not. If the client belongs to a specific VLAN, then the client traffic is forwarded to that VLAN based on its IP address and security profile 12.

The persona role option that should be selected to deploy a Gateway and take advantage of all the SD-WAN features is A. ArubaOS 10 Branch.

ArubaOS 10 Branch is a persona that enables the Gateway to provide both LAN and WAN functionality for branch networks. The Gateway can act as a wireless controller, a router, a firewall, and an SD-WAN device.The SD-WAN features include route andtunnel orchestration, dynamic path steering, forward error correction, SaaS traffic optimization, SASE orchestration, and more1.

The other options are incorrect because:

B. ArubaOS 10 VPN Concentrator: This is a persona that enables the Gateway to act as a VPN concentrator for remote access or site-to-site VPN connections.It does not provide SD-WAN features2.

C. ArubaOS 10 Wireless: This is a persona that enables the Gateway to act as a wireless controller for campus networks.It does not provide SD-WAN features3.

D. ArubaOS 10 Mobility: This is a persona that enables the Gateway to act as a mobility controller for campus networks. It does not provide SD-WAN features.

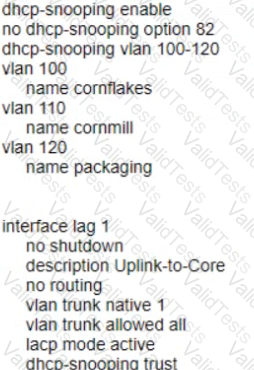

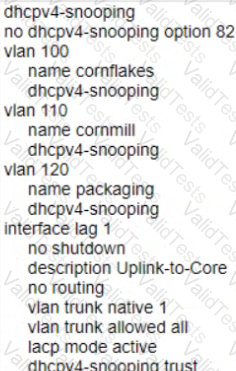

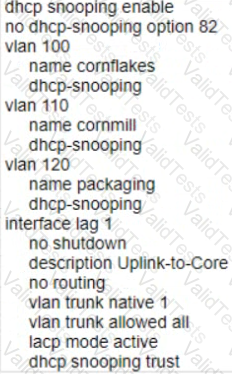

configures DHCP snooping on the switch and enables it for VLANs 100, 110, and 120. It also specifies the IP address of the authorized DHCP server and sets the ports connected to the server as trusted. This prevents any unauthorized DHCP server from providing invalid configuration data to the clients on those VLANs. Option B also enables DHCP option-82, which adds information about the switch port and VLAN to the DHCP packets, allowing for more granular control and logging of DHCP transactions.

QoS stands for Quality of Service and is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc3. QoS involves identifying specific traffic for special treatment and applying policies and actions to improve its performance or meet certain service level agreements (SLAs)3. QoS can help network devices to manage congestion, delay, jitter, packet loss, bandwidth allocation, etc., for different types of traffic3. QoS can be implemented at various layers of the network stack and across different network domains. References: 3 https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html

The information that the Inter-Switch Link Protocol configuration uses in the configuration created is B. MAC tables.

The Inter-Switch Link Protocol (ISL) is a protocol that enables the synchronization of data and state information between two VSX peer switches. The ISL uses a version control mechanism and provides backward compatibility regarding VSX synchronization capabilities. The ISL can span long distances (transceiver dependent) and supports different speeds, such as 10G, 25G, 40G, or 100G1.

One of the data components that the ISL synchronizes is the MAC table, which is a database that stores the MAC addresses of the devices connected to the switch and the corresponding ports or VLANs. The ISL ensures that both VSX peers have the same MAC table entries and can forward traffic to the correct destination2. The ISL also synchronizes other data components, such as ARP table, LACP states for VSX LAGs, and MSTP states2.

CoA (Change of Authorization) is a feature that allows ClearPass to dynamically change the authorization and access privileges of a device after it has been authenticated1. CoA uses RADIUS messages to communicate with the network device and instruct it to perform an action, such as reauthenticating the device, applying a new VLAN or user role, or disconnecting the device2.

To enable CoA on a CX switch, the network engineer needs to configure dynamic authorization on the switch, which is a global command that allows the switch to accept RADIUS messages from ClearPass and execute the requested actions3. The network engineer also needs to specify the IP address and shared secret of ClearPass as a dynamic authorization client on the switch3.

To trigger CoA for a specific wired device, the network engineer needs to bounce the switchport, which is an action that temporarily disables and re-enables the port where the device is connected. This forces the device to reauthenticate and receive the new policy from ClearPass. Bouncing the switchport can be done manually by using the interface shutdown and no shutdown commands, or automatically by using ClearPass as a CoA server and sending a RADIUS message with the Port-Bounce-Host AVP (Attribute-Value Pair).
