Pass the Huawei HCIA-Datacom H12-811_V1.0 Questions and answers with ValidTests

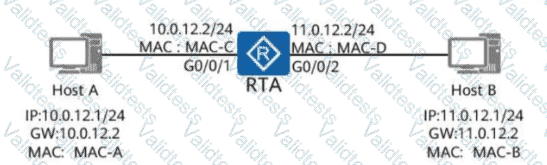

Comprehensive Explanation: When Router A forwards the packet to Router B, the destination IP address (11.0.12.1) remains unchanged as it is still meant for Host B. However, the destination MAC address changes to MAC-B, which belongs to Host B, since MAC addresses are only used for local network hops​

Detailed Explanation:A device running Standard Spanning Tree Protocol (STP) is not compatible with Rapid Spanning Tree Protocol (RSTP) BPDUs and will discard them upon receipt. STP devices cannot interpret the additional RSTP fields, leading to discarded BPDUs. (Reference: HCIA-Datacom Training Material, STP and RSTP Compatibility)

With a subnet mask of /25, the IP range for this subnet would be 192.168.1.0 to 192.168.1.127. Here, 192.168.1.127 is the last usable address in the subnet, making it a valid host address rather than a network or broadcast address. This address falls within the range of available host addresses for that subnet​.

In IPv6, addresses with the FE80::/10 prefix are Link-Local Addresses.

Option A (Incorrect - Global unicast address): These have prefixes such as 2000::/3.

Option B (Incorrect - Multicast address): Multicast addresses start with FF00::/8.

Option C (Correct - Link-local address): FE80::/10 is reserved for Link-Local addresses, used for communication within a local link.

Option D (Incorrect - Anycast address): Anycast addresses are assigned to multiple interfaces but are not identified by a specific prefix.

Thus, the correct answer is C.

Detailed Explanation:DNS (Domain Name System) is responsible for translating human-readable domain names (like www.example.com) into IP addresses, enabling devices to locate services on a network. (Reference: HCIA-Datacom Training Material, DNS Function and Protocol Overview)

Comprehensive and Detailed Explanation:

Huawei controllers support open APIs for network programmability:✅ RESTful → Web-based API using HTTP methods.✅ OpenFlow → SDN protocol for control/data plane separation.✅ NETCONF → XML-based network configuration protocol.

❌ Incorrect Option:

AAA (Authentication, Authorization, and Accounting) is a security mechanism, NOT an open API.

✅ Reference: HCIA-Datacom SDN Guide – Open API Support

Comprehensive and Detailed In-Depth Explanation:

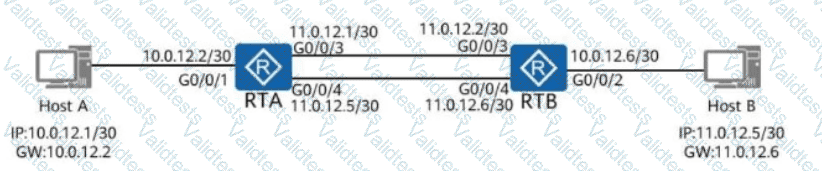

Host A (10.0.12.1/30) needs to send traffic to Host B (11.0.12.5/30) via Router A G0/0/3.

Host B (11.0.12.5/30) needs to send traffic to Host A (10.0.12.1/30) via Router B G0/0/4.

The correct static routes should specify the next-hop correctly to ensure the desired path is used.

Option D correctly ensures traffic flow through the required interfaces (G0/0/3 and G0/0/4).
