Transit traffic that traverses the forwarding plane of a Layer 3 router includes both unicast and multicast traffic types. Unicast traffic is directed from a single source to a single destination, while multicast traffic is sent from one source to multiple destinations that are part of a multicast group. These types of traffic are efficiently routed through the network by leveraging the router's forwarding plane capabilities. Exception traffic, which requires special handling by the control plane, and broadcast traffic, which is typically limited to a single broadcast domain and not usually forwarded by Layer 3 routers, are not considered standard types of transit traffic for the forwarding plane of a router.

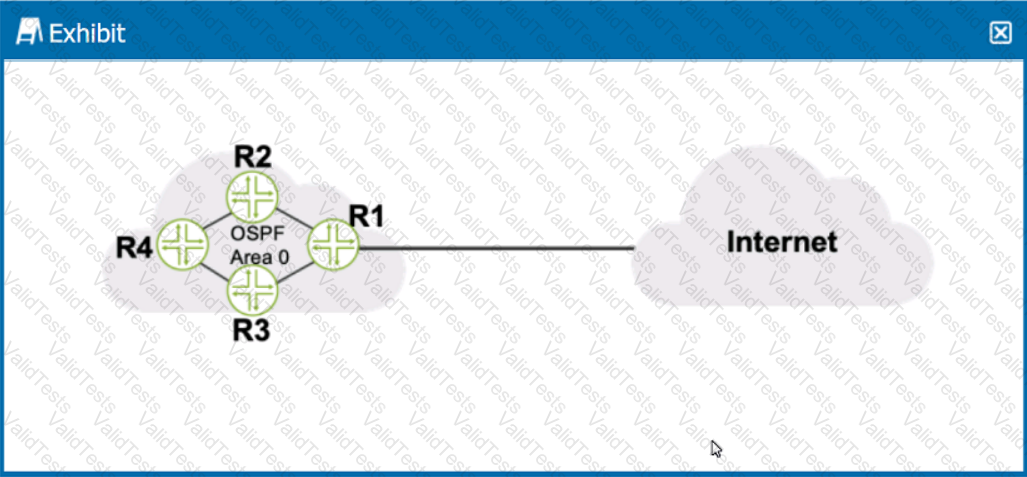

To advertise a default static route into OSPF on router R1, a routing policy should be configured. This policy would typically include a statement to match the default route (0.0.0.0/0) and then apply an action to set the route as an OSPF external type, which would then be redistributed into the OSPF domain. The routing policy is a set of conditions and actions that determine how routes are imported into or exported from the routing table and how routes are shared between routing instances or routing protocols. After defining the policy, it must be applied to OSPF under the export section of the OSPF configuration on R1. This process will allow R1 to announce the default route to other OSPF routers in the network, which then can use it as a gateway of last resort to reach the Internet or other networks not explicitly known to the OSPF domain.

The load-balance per-flow statement in the Junos OS policy-options configuration enables flow-based load balancing in the forwarding table. This means that the traffic is distributed across multiple paths based on flows, where a flow is typically identified by attributes such as source and destination IP addresses, and possibly layer 4 information like TCP/UDP ports. This allows for more granular and efficient utilization of available paths, avoiding overloading a single path. The policy does not enable per-packet load balancing, which would send individual packets of the same flow over different paths, potentially causing out-of-order delivery issues. The policy's placement in the forwarding-table export suggests it's intended to influence forwarding behavior, not just routing protocol decisions, and does not necessarily have to be applied under the protocols hierarchy.

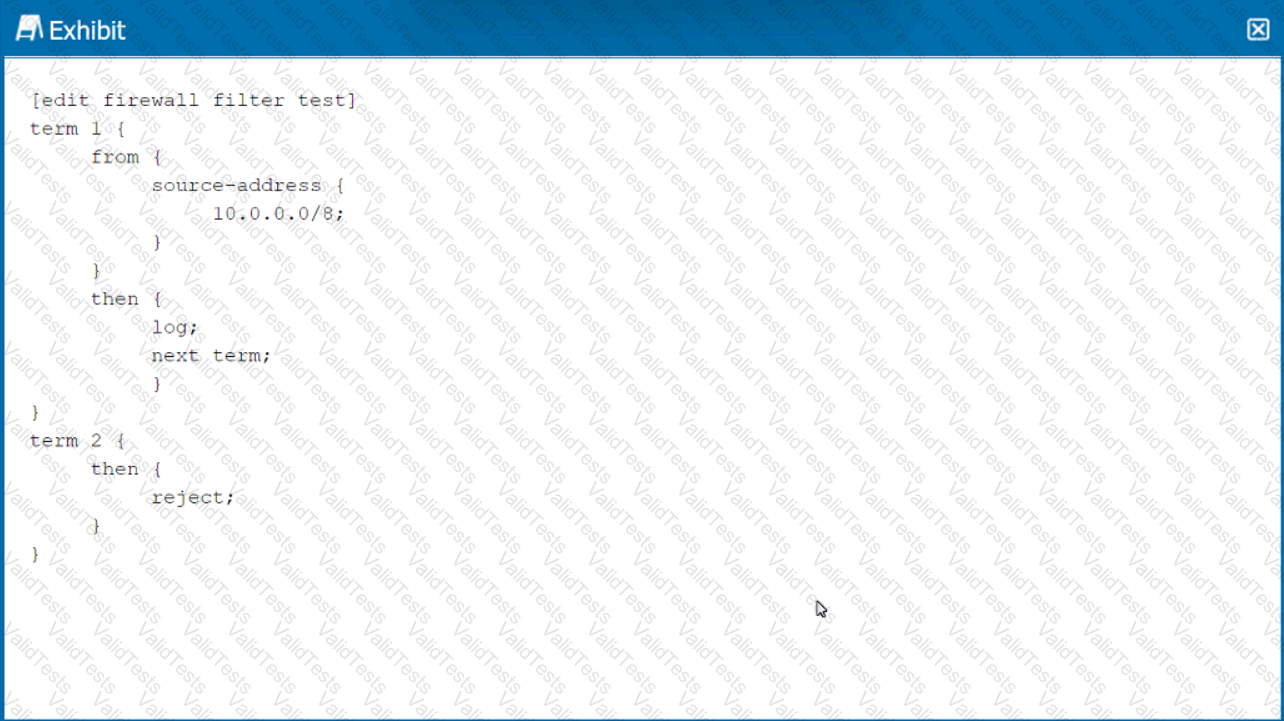

The firewall filter configuration in the exhibit specifies a filter with two terms. Term 1 matches traffic from the source address 10.0.0.0/8 and has two actions: 'log' and 'next term'. The 'log' action will record the match to a log file, and 'next term' indicates that the firewall should evaluate the next term after logging. There is no explicit action such as 'accept' or 'reject' in term 1, so by default, the traffic will be accepted unless subsequently rejected by another term.

Term 2 has the action 'reject', which discards packets that reach this term. Since there is no 'from' condition in term 2, it acts as a default rule for all traffic not matched by term 1.

Because the traffic sourced from 10.0.0.0/8 matches term 1 and there is no reject action in that term, it will be logged and then accepted by the firewall filter. There is no subsequent term that rejects this specific traffic, so the action from term 2 does not apply to it.

MAC (Media Access Control) addresses are unique identifiers assigned to network interfaces for communications at the data link layer of a network segment. MAC addresses are used to identify the physical hardware on a network. In the context of Ethernet switches, the destination MAC address in incoming frames is used to determine the appropriate output port for forwarding the frame towards its final destination. The switch does not change the destination MAC address; it uses the MAC address to make forwarding decisions within the local network segment.

The Address Resolution Protocol (ARP) is responsible for mapping an IPv4 address to a machine's MAC address. ARP operates at Layer 2 of the OSI model and is used to find the MAC address of a host given its IPv4 address. When a device wants to communicate with another device on the same local network, it uses ARP to discover the recipient's MAC address.

References:

Juniper official documentation: ARP.

Networking standards: RFC 826.

In Junos OS, when two entries for the same destination exist in the routing table, the route with the lowest preference number is selected as the active route. This preference number, also known as the route preference or administrative distance, is used to prioritize routes received from different routing protocols.

When you enter ? at the command-line prompt in Junos OS, the system provides assistance in two significant ways. Firstly, it lists the available commands and options that can be used at the current point in the command hierarchy, aiding users in understanding what commands they can execute next. Secondly, it displays summary information about those commands and options, providing brief descriptions or additional context that can help users understand the function of each command or option. This feature is particularly useful for learning the command structure or for quick reference when specific command syntax is forgotten.

An Ethernet frame header includes the source MAC address (B) and the destination MAC address (D). These addresses are used to deliver the frame from one Ethernet device to another directly connected Ethernet device on the same network segment. Ethernet frames do not include IP addresses, as those are part of the IP packet encapsulated within the Ethernet frame.

Two physical interface properties in Junos OS include the MAC address (A) and the Maximum Transmission Unit (MTU) size (D). The MAC address is a hardware identifier for the network interface, while the MTU size determines the largest packet size that the interface can transmit without needing to fragment the packet.
