In the JNCIA-SEC SRX security policy context, standard security policies control transit traffic passing through the firewall. They are not the normal mechanism for permitting management or protocol traffic destined to the SRX itself; that type of self or exception traffic is controlled with host-inbound-traffic settings. Security policies can be configured between different zones, which is inter-zone policy, or within the same zone, which is intra-zone policy. Therefore, option C is correct because policies can apply to both intra-zone and inter-zone flows. Option D is correct in the standard SRX policy model because security policies are used to control traffic transiting the firewall. Options A and B are not correct for this topic scope.

The session output shows traffic entering the SRX from 192.0.2.212/49862 to the public destination 203.0.113.199/22. The paired flow shows the translated internal server address as 10.10.101.10/22. This confirms destination NAT because the original destination IP address 203.0.113.199 is translated to the internal destination IP address 10.10.101.10. Juniper’s destination NAT documentation shows the same interpretation of show security flow session: the incoming flow is destined to the public address, while the paired flow displays the translated private destination address. PAT is not being performed because the destination port remains 22 before and after translation. PAT would require port translation, but no port number changes are shown.

NAT rule processing on SRX devices follows a deterministic order:

Top-to-bottom order (Option C): NAT rules are always evaluated in the order they appear in the configuration, starting at the top.

First-match wins (Option B): Once a packet matches a NAT rule, processing stops.

Option A: Incorrect. Not all rules are processed; evaluation stops at the first match.

Option D: Incorrect. NAT rules are never processed bottom-to-top.

Correct Statements: NAT rule processing stops at the first match, and NAT rules are processed top-to-bottom.

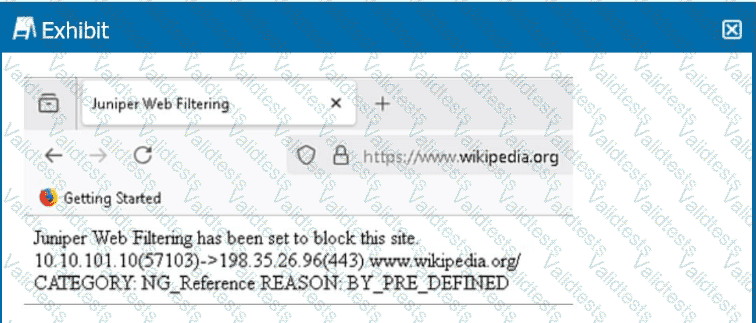

From the exhibit:

The user attempted to access https://www.wikipedia.org.

The block page indicates:

CATEGORY: NG_Reference

REASON: BY_PRE_DEFINED

The header states: “Juniper Web Filtering has been set to block this site.”

Analysis of options:

Option A: Correct. The log shows “REASON: BY_PRE_DEFINED,” which means the site was blocked because it matched a predefined category in the Web filtering database.

Option B: Correct. The category “NG_Reference” indicates that the NextGen (Enhanced/Cloud-based) Web Filtering type is being used.

Option C: Incorrect. The exhibit does not provide any information about SSL proxy configuration; it only shows that the HTTPS site was blocked.

Option D: Incorrect. The block page shown is the standard Juniper default block page, not a custom message.

Correct Statements: The URL matches a predefined Web filtering category, and the NextGen Web Filtering type is being used.

RFC 1918 defines three private IPv4 blocks:

10.0.0.0/8

172.16.0.0/12

192.168.0.0/16

Option A exactly matches these ranges in a single source NAT rule, replacing numerous per-subnet entries.

Options B and C contain invalid/non-RFC1918 networks (e.g., 192.16.0.0/12, 172.168.0.0/16).

Option D incorrectly adds documentation network 192.0.2.0/24 , which is not RFC1918.

Inbound Flow (before NAT): Source = 10.20.30.40 (internal private IP) Destination = 203.0.113.1 (public DNS server)

Outbound Flow (after NAT): Source = 192.0.2.1 (translated IP) Destination = 203.0.113.1 (unchanged)

Analysis:

The source IP (10.20.30.40) was translated to 192.0.2.1 . This indicates Source NAT was applied → Option B is correct .

The destination IP changed between the inbound and outbound view. Inbound it was 203.0.113.1 , and outbound it is still 203.0.113.1 in appearance, but notice the reversal: the session entry shows it as the outbound " source " side. This confirms Destination NAT translation has occurred for return flow consistency → Option D is correct .

Option A: Incorrect. The original source IP was indeed translated.

Option C: Incorrect. The destination IP did change in the flow processing.

Correct Statements:

The original source IP address was translated to a new source IP address.

The original destination IP address was translated to a new destination IP address.

On SRX Series Firewalls, Junos OS automatically creates system-defined zones that have special functions:

Null zone (Option A): A predefined discard zone. By default, all interfaces belong to the null zone until assigned to a user-defined zone. Traffic destined to the null zone is dropped.

Junos-host zone (Option B): A predefined functional zone that allows security policies to control traffic directed to the SRX device itself (management traffic, such as SSH, HTTP, SNMP).

Management zone (Option C): There is a predefined management functional zone , but it is not called " management " as a system-defined security zone.

DMZ (Option D): A DMZ zone must be explicitly created by the administrator, it is not system-defined.

Correct Zones: null, junos-host

Default assignment: All logical interfaces are placed in the null zone by default until explicitly assigned to a user-defined security zone (Option A is correct).

Removal from null zone: Once an interface is assigned to a security zone, it is removed from the null zone (Option D is correct).

No traffic acceptance: The null zone is a discard zone; it cannot be configured to accept any traffic (Option C is incorrect).

Policy behavior: Traffic rejected by a security policy is dropped according to the policy action. It is not forwarded to the null zone for logging (Option B is incorrect).

Correct Statements: A and D

The Juniper SRX antispam feature checks messages in a specific order when both local lists and the SBL server are used.

The processing order is:

Local allowlist is checked first. If there is a match, the message is allowed, and no further antispam checking is performed.

Local blocklist is checked second. If there is a match, the configured spam action is applied.

Spam Block List (SBL) server is checked last. If the sender is not found in the local allowlist or blocklist, the SRX queries the SBL server.

Therefore, the correct processing order is:

allowlist → blocklist → Spam Block List (SBL) server

Intra-zone traffic: On SRX devices, traffic between interfaces in the same security zone is allowed without requiring a security policy (Option C is correct). Policies are only evaluated for inter-zone traffic.

Junos-host functional zone: This zone is a predefined functional zone that allows administrators to apply policies controlling access to the SRX firewall itself, such as SSH, HTTP, or SNMP traffic (Option D is correct).

Null zone: This zone is a predefined discard zone. Interfaces placed in the null zone drop all traffic. It does not allow policy logging of dropped control plane traffic (Option A is incorrect).

Management functional zone: This is used to define management interfaces, not the “functional zone” as stated in Option B (incorrect wording).

Correct Statements: C and D
