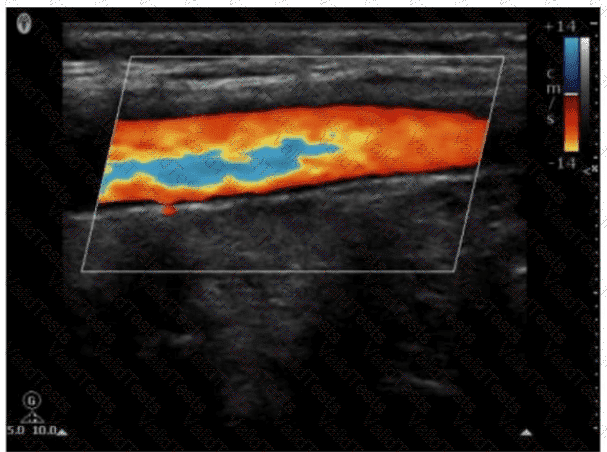

The color Doppler image shows an artifact where high-velocity blood flow exceeds the Nyquist limit, resulting in color wrap-around or aliasing. This artifact is visualized as a mosaic pattern of colors that abruptly change, indicating that the velocity exceeds the color Doppler scale's maximum. Aliasing occurs when the sampling rate (pulse repetition frequency) is insufficient to accurately capture the high velocities, causing the display to cycle back to lower velocities.

Comprehensive and Detailed Explanation From Exact Extract:

The Doppler equation demonstrates that the Doppler shift frequency is directly proportional to the velocity of the moving reflector (typically red blood cells).

The Doppler shift formula is:

Doppler shift = (2 × transducer frequency × reflector velocity × cos θ) / propagation speed

According to sonography instrumentation references:

“The Doppler shift frequency increases as the velocity of the moving reflector increases. This relationship is linear when all other factors remain constant.”

Therefore, the correct answer is D: Velocity of the moving reflector.

—

High-Frequency Transducer: These provide better resolution but do not directly cause posterior enhancement.

Low-Frequency Transducer: These provide better penetration but are not the cause of posterior enhancement.

Strongly Attenuating Structure: This would cause acoustic shadowing rather than enhancement.

Weakly Attenuating Structure: Structures that attenuate the ultrasound beam less than the surrounding tissues allow more sound waves to pass through, resulting in increased brightness or "enhancement" behind the structure.

Changing the displayed depth control directly affects the pulse repetition frequency (PRF). When the depth setting is increased, the ultrasound system needs more time to send and receive echoes from deeper structures, resulting in a lower PRF. Conversely, decreasing the depth allows for a higher PRF since the time required for the sound waves to travel to and from the structures is shorter. PRF is crucial for determining the maximum detectable velocity in Doppler ultrasound without aliasing.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Comprehensive and Detailed Explanation From Exact Extract:

Harmonic imaging operates by transmitting at the fundamental frequency and receiving echoes at the second harmonic frequency (which is twice the fundamental frequency). Therefore, the transducer must have a broad enough bandwidth to include both frequencies.

According to sonography instrumentation reference:

“For harmonic imaging, the transducer bandwidth must accommodate both the transmitted fundamental frequency and the received second harmonic frequency.”

Therefore, the correct answer is A: Fundamental and second harmonic frequencies.

—

Comprehensive and Detailed Explanation From Exact Extract:

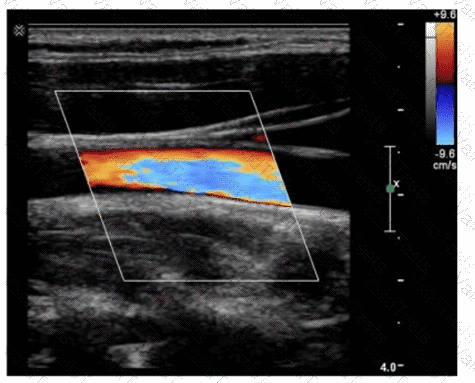

Aliasing occurs in pulsed-wave Doppler imaging when the Doppler shift frequency exceeds the Nyquist limit (which is half the pulse repetition frequency, PRF). This results in a wrap-around of the Doppler signal, which appears as a reversal of flow direction (aliasing artifact).

According to standard Principles and Instrumentation references in sonography:

“To eliminate aliasing, the Doppler PRF (scale) should be increased. Increasing the PRF raises the Nyquist limit and therefore allows for higher measurable velocities without aliasing.”

The correct adjustment to correct this aliasing artifact isC: Increase the Doppler pulse repetition frequency. This effectively increases the Nyquist limit and resolves the wrap-around aliasing appearance.

Options A and B (adjusting the spectral Doppler gain) would only change the appearance of the Doppler waveform (i.e., its amplitude and brightness) but would not affect aliasing. Option D (decreasing the PRF) would actually worsen the aliasing by lowering the Nyquist limit.

Therefore, the correct choice is toincrease the Doppler PRF.

Comprehensive and Detailed Explanation From Exact Extract:

Each additional focal zone requires extra transmissions per scan line, which slows down frame acquisition, thereby reducing the frame rate.

Principles and Instrumentation state:

"Increasing the number of focal zones lowers frame rate because multiple pulses are needed per scan line for each focal depth."

Increasing PRF (B) allows faster data acquisition.

Decreasing depth (C) shortens round-trip time, increasing frame rate.

Decreasing sector width (D) reduces scan lines, increasing frame rate.

Comprehensive and Detailed Explanation From Exact Extract:

Cross talk (spectral mirror artifact) appears as a duplication of the spectral waveform above and below the baseline. One primary cause is excessive Doppler gain, which amplifies weak signals and noise symmetrically. Reducing gain minimizes this artifact.

Principles and Instrumentation state:

"Cross talk in spectral Doppler may result from high gain settings. Lowering the gain can reduce or eliminate this artifact."

PRF adjustments affect aliasing, not cross talk.

Baseline shifts affect waveform positioning.

Wall filter affects low-frequency signals but not cross talk.

Therefore, the correct answer is A: By decreasing the Doppler gain.

QUESTION NO28

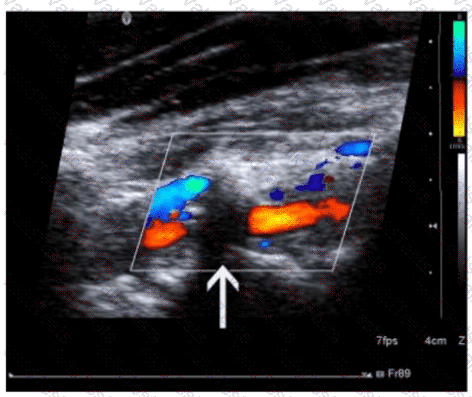

Which artifact is demonstrated by the arrow in this image?

A close-up of an ultrasound Description automatically generated

A. Mirroring

B. Noise

C. Shadowing

D. Enhancement

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

The image shows an area of signal dropout directly deep to the strongly reflecting structure (likely a vessel wall or calcification), indicated by the arrow. This is a classic example of shadowing artifact.

According to sonography Principles and Instrumentation:

"Shadowing occurs when a highly attenuating or reflective structure blocks the ultrasound beam, resulting in absence of signal distal to the object."

Mirroring (A) produces duplicated structures.

Noise (B) appears as random speckles.

Enhancement (D) produces increased echogenicity distal to an anechoic structure.

Therefore, the correct answer is C: Shadowing.

—

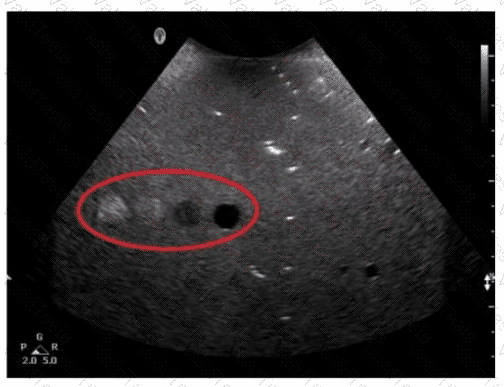

The tissue-equivalent phantom image with the red oval indicates an area where axial resolution can be evaluated. Axial resolution refers to the ability to distinguish between two structures that are close together along the axis of the ultrasound beam. It is determined by the spatial pulse length (SPL) of the ultrasound wave. In phantoms, this is typically tested by observing the ability to separate closely spaced targets along the beam's path.

Range ambiguity artifact occurs when echoes from one pulse are received after the next pulse has been emitted, leading to the incorrect placement of echoes at shallower depths than their true location. This artifact typically happens when the PRF is set too high, causing the ultrasound system to interpret delayed echoes as coming from the current pulse rather than the previous one. This results in reflectors appearing closer to the transducer than they actually are.
