Comprehensive and Detailed Explanation From Exact Extract:

When sound passes through a structure that attenuates less than surrounding tissue (e.g., fluid-filled cyst), more sound reaches the tissues behind it, causing them to appear brighter. This artifact is called enhancement (or posterior acoustic enhancement).

According to sonography instrumentation reference:

“Posterior enhancement appears as increased echogenicity distal to a weakly attenuating structure due to greater beam intensity reaching deeper tissues.”

Therefore, the correct answer is A: Enhancement.

—

Comprehensive and Detailed Explanation From Exact Extract:

Persistence is a post-processing technique that averages multiple consecutive frames to reduce random noise and smooth the displayed image. It helps enhance image quality by stabilizing slow-moving or stationary structures while sacrificing some temporal resolution.

As per official sonography Principles and Instrumentation guidelines:

"Persistence is a frame averaging technique that reduces speckle and temporal noise, improving image smoothness by combining data from successive frames."

Elastography measures tissue stiffness.

Panoramic imaging extends the field of view.

Fusion imaging combines ultrasound with other imaging modalities.

Therefore, the correct answer is C: Persistence.

QUESTION NO10

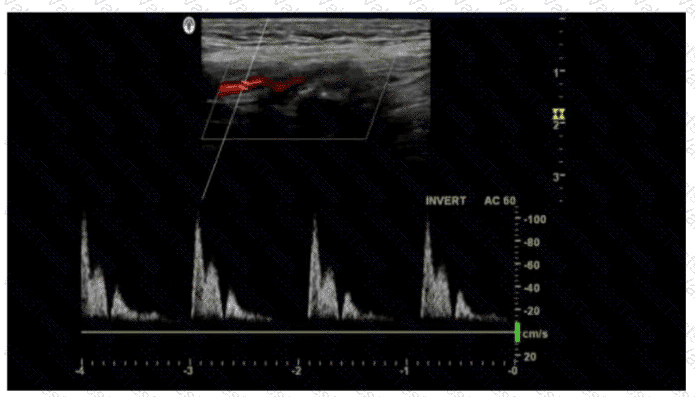

Which change would allow low velocities to be displayed in this spectral Doppler image?

A close-up of a ultrasound Description automatically generated

A. Decrease compression

B. Increase sample volume size

C. Increase transmitted frequency

D. Decrease wall filter

Answer: D

Comprehensive and Detailed Explanation From Exact Extract:

In the spectral Doppler display shown, the wall filter setting determines the lower limit of velocity signals that are displayed. A high wall filter removes low-velocity signals (such as end-diastolic flow or slow venous flow), while a lower wall filter allows both high and low velocities to be visualized.

According to the official Principles and Instrumentation documents:

"The wall filter eliminates low-frequency Doppler shifts, which correspond to low-velocity blood flow or motion artifacts. Decreasing the wall filter allows display of low-velocity flow components that may otherwise be filtered out."

Decreasing compression (A) adjusts dynamic range but does not influence velocity detection.

Increasing sample volume size (B) affects spatial resolution and signal amplitude but not velocity thresholds.

Increasing transmitted frequency (C) may improve sensitivity but does not directly control the display of low velocities.

Therefore, the correct answer is D: Decrease wall filter.

Power Doppler, unlike color Doppler, is less angle dependent because it detects the strength of the Doppler signal rather than the velocity of the blood flow. This means it is more sensitive to detecting low-velocity flow and flow in smaller vessels, regardless of the angle between the ultrasound beam and the flow direction. Color Doppler provides information on flow direction and velocity but is highly dependent on the angle of insonation, making it less reliable when the angle is suboptimal.

ARDMS Sonography Principles and Instrumentation guidelines

Zwiebel, W. J., & Pellerito, J. S. (2017).Introduction to Vascular Ultrasonography. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

Persistence is a post-processing technique that averages multiple consecutive image frames to reduce random noise and improve image smoothness. This is especially useful for reducing speckle and enhancing the clarity of stationary or slow-moving structures.

According to official sonography Principles and Instrumentation documentation:

"Persistence uses frame averaging, combining data from several sequential frames to reduce noise, enhance image quality, and stabilize the appearance of stationary structures."

Demodulation (A) is part of signal processing that extracts the Doppler frequency shift.

Compression (C) alters the dynamic range of the image but does not reduce noise through frame averaging.

Time gain compensation (D) adjusts amplification at various depths to equalize brightness but does not perform frame averaging.

Therefore, the correct answer is B: Persistence.

QUESTION NO12

What does this image demonstrate?

A ultrasound of a fetus Description automatically generated

A. Presence of flow

B. Direction of flow

C. Color aliasing

D. Color inversion

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In the provided image, the color Doppler display shows a mixture of colors (typically red, yellow, and shades shifting abruptly), indicating that velocities have exceeded the Nyquist limit — the maximum detectable Doppler shift for the given pulse repetition frequency (PRF). This creates a color aliasing artifact.

According to the official sonography Principles and Instrumentation documentation:

"Color aliasing occurs when flow velocities exceed the Nyquist limit, causing a wrap-around of the color scale. This results in abrupt changes in color hue that do not accurately represent flow direction or velocity."

Presence of flow (A) is correct but too general.

Direction of flow (B) refers to color assignment but not to the artifact seen.

Color inversion (D) inverts the color map but does not cause the abrupt color changes seen here.

The alternating, banded colors are classic for color aliasing, confirming that the correct answer is C: Color aliasing.

M-mode (Motion mode) is used in ultrasound to measure and display the movement of structures over time.

This mode is particularly useful in cardiac imaging to assess the motion of heart walls and valves.

M-mode provides a one-dimensional view of the motion of tissues and is often used in conjunction with 2D imaging for a comprehensive assessment.

It is essential in evaluating the dynamic function of organs, especially in cardiology, where precise measurements of cardiac structures' movement are crucial.References:

ARDMS Sonography Principles and Instrumentation guidelines on modes of ultrasound imaging and their clinical applications.

Comprehensive and Detailed Explanation From Exact Extract:

The imaging depth is limited by the frequency of the transducer because higher frequency sound waves attenuate more rapidly as they penetrate tissue, reducing maximum depth capability.

According to Principles and Instrumentation:

"Higher frequencies provide better resolution but have increased attenuation, limiting penetration depth. Lower frequencies penetrate deeper but at the cost of resolution."

Propagation speed is relatively constant in soft tissue (~1540 m/s), amplitude affects signal strength but not depth limit directly, and focal depth is an adjustable beam parameter.

Therefore, the correct answer is B: Frequency.

QUESTION NO15

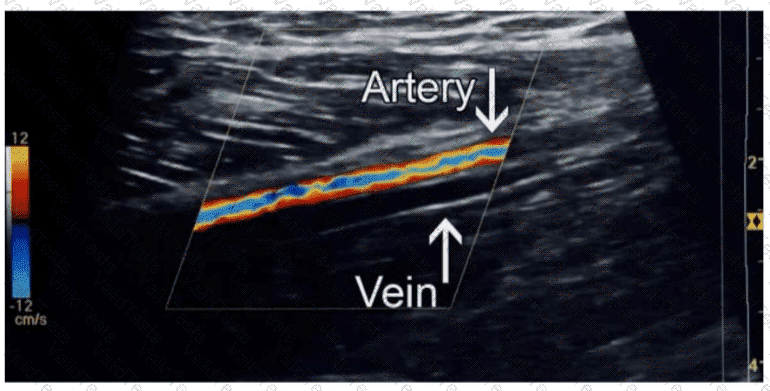

Which color Doppler setting adjustment would likely demonstrate color flow in the normal vein seen in this image?

An ultrasound image of veins and veins Description automatically generated

A. Decreasing scale

B. Increasing scale

C. Decreasing persistence

D. Increasing persistence

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

Veins generally exhibit low-velocity flow. The color scale (or velocity range) must be low enough to detect these slow flows. Decreasing the scale lowers the Nyquist limit, allowing the machine to display lower velocities that may otherwise be undetectable.

Principles and Instrumentation state:

"Reducing the scale increases sensitivity to low-velocity flows such as venous flow, while high scales may suppress these signals."

Therefore, the correct answer is A: Decreasing scale.
