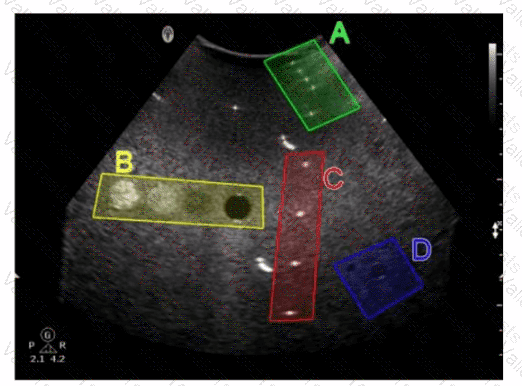

Gray-scale evaluation in a tissue-mimicking phantom involves assessing the uniformity and accuracy of the gray-scale representation of the tissues.

Option C typically contains structures designed to test the machine's ability to accurately depict varying levels of echogenicity, which is essential for proper gray-scale evaluation.

This area will have a range of echo intensities that help in determining the contrast resolution and the ability of the system to distinguish between different tissue types based on their gray-scale values.References:

ARDMS Sonography Principles and Instrumentation guidelines on tissue-mimicking phantoms and image quality evaluation.

Comprehensive and Detailed Explanation From Exact Extract:

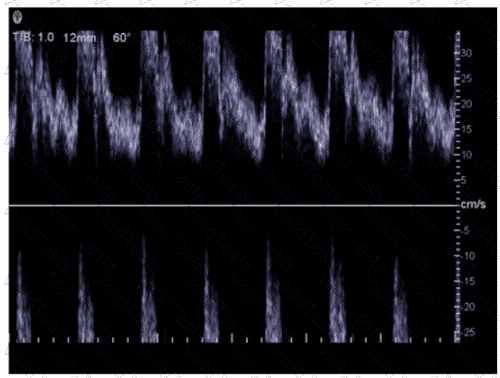

Spectral Doppler aliasing occurs when the Doppler frequency shift exceeds the Nyquist limit. The Doppler shift is proportional to the cosine of the Doppler angle. Increasing the Doppler angle (moving closer to 90 degrees) reduces the cosine value, thus reducing the Doppler shift frequency and helping to avoid aliasing.

According to sonography instrumentation reference:

“Increasing the Doppler angle reduces the Doppler shift frequency, thus decreasing the likelihood of aliasing in spectral Doppler.”

Therefore, the correct answer is A: Increase Doppler angle.

—

Comprehensive and Detailed Explanation From Exact Extract:

Mechanical Index (MI) estimates the likelihood of non-thermal bioeffects such as cavitation (formation of microbubbles).

Principles and Instrumentation state:

"Mechanical Index reflects the risk of cavitation. Higher MI values increase cavitation potential."

Attenuation coefficient (A) refers to energy loss.

Thermal index (C) reflects potential heating.

Frame rate (D) relates to temporal resolution.

Therefore, the correct answer is B: Mechanical index.

—

QUESTION NO42

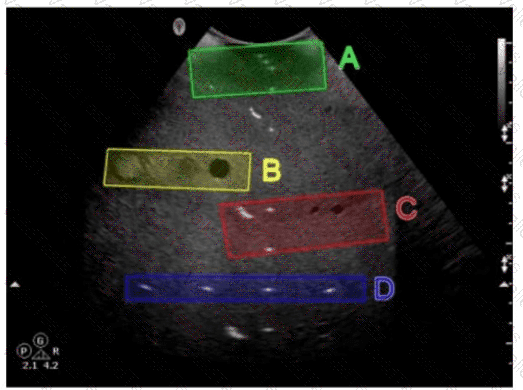

Which target group is used to evaluate transverse distance measurement accuracy in this tissue-mimicking phantom image?

A ultrasound image of a baby Description automatically generated with medium confidence

A. A

B. B

C. C

D. D

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In a tissue-mimicking phantom, the group of targets aligned side-by-side (horizontally) is used to evaluate transverse (lateral) distance measurement accuracy. In the image, target group C (in red) represents the lateral spacing targets.

Principles and Instrumentation state:

"Transverse distance accuracy is evaluated using laterally spaced targets in the phantom to verify correct lateral measurement calibration."

Group A (top) is typically for near field assessment.

Group B may be for axial resolution or cyst evaluation.

Group D (deep) may assess depth calibration or sensitivity.

Therefore, the correct answer is C: C.

—

The artifact demonstrated in the image is mirroring. This occurs when the ultrasound beam encounters a strong reflector, such as a diaphragm or pleura, and is reflected back and forth between the object and the transducer. This results in a duplicate image appearing on the other side of the strong reflector, creating a mirror image artifact. It is crucial for sonographers to recognize and differentiate this artifact from actual anatomical structures to avoid misinterpretation.

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation study materials.

Diagnostic Ultrasound: Principles and Instruments by Kremkau, F. W. (latest edition).

A high wall filter is used in Doppler ultrasound to eliminate low-frequency signals that may be attributed to vessel wall motion or other low-velocity flows. However, if the wall filter is set too high, it can inadvertently eliminate desired low-frequency Doppler signals that represent real blood flow, particularly in smaller vessels or those with slower flow velocities. This results in a loss of valuable diagnostic information.

The frame rate in color flow imaging is influenced by several factors, one of the most significant being line density. Line density refers to the number of ultrasound lines used to create an image. Increasing line density improves spatial resolution but requires more time to acquire each frame, thereby reducing the frame rate. Other factors such as filter selection, dynamic range, and variance map selection can affect the quality of the color flow image, but they do not have as direct an impact on frame rate as line density does.

Comprehensive and Detailed Explanation From Exact Extract:

The proper care and reprocessing of ultrasound transducers follow a strict hierarchy of steps. The first step is always physical cleaning, which involves removing visible debris, gel, and contaminants from the transducer surface. This must be done prior to any disinfection or sterilization process because organic material can inhibit the effectiveness of these subsequent steps.

According to sonography Principles and Instrumentation documentation:

"Cleaning is the first and essential step in reprocessing ultrasound probes. It removes gel, blood, and other organic material. Disinfection or sterilization should never be performed before cleaning, as residual debris reduces their effectiveness."

Therefore, the correct answer is C: Clean.

—

Temporal resolution is improved by increasing the frame rate. One way to increase the frame rate is by decreasing the packet size (also known as ensemble length) in color Doppler imaging. The packet size refers to the number of pulses used to determine the Doppler shift at each location. A smaller packet size means fewer pulses are required, which allows for quicker data acquisition and thus a higher frame rate. Increasing the field of view, decreasing transmit frequency, and increasing line density would all decrease the frame rate and thus degrade temporal resolution.

Comprehensive and Detailed Explanation From Exact Extract:

In pulsed-wave transducers, the thickness of the piezoelectric element primarily determines the fundamental operating frequency. Thinner elements produce higher frequencies, while thicker elements produce lower frequencies.

According to sonography instrumentation reference:

“The operating frequency of a pulsed-wave transducer is primarily determined by the thickness of the piezoelectric crystal. Thinner crystals vibrate at higher frequencies.”

Therefore, the correct answer is A: Element thickness.

—

—

Comprehensive and Detailed Explanation From Exact Extract:

Attenuation increases with both frequency and depth. The highest attenuation occurs at the highest frequency and greatest depth. 7.5 MHz attenuates faster than 5 MHz, and 5 cm represents deeper tissue penetration.

Principles and Instrumentation state:

"Attenuation is directly proportional to frequency and path length: Attenuation = Frequency × Depth × Attenuation Coefficient."

Therefore, the correct answer is D: 7.5 MHz at 5 cm.

—
