Comprehensive and Detailed Explanation From Exact Extract:

The primary purpose of compression is to reduce the dynamic range of received echoes, making the image more visually interpretable by adjusting contrast without losing diagnostic information.

According to sonography instrumentation reference:

“Compression reduces the dynamic range of the signal amplitudes to fit within the display range of the monitor while preserving important differences in tissue echogenicity.”

Therefore, the correct answer is D: Reduce the dynamic range.

—

Damping in a pulsed-wave transducer primarily affects the pulse duration. Damping refers to the process of reducing the vibration of the transducer crystal after the initial excitation. When damping is applied, it shortens the length of the ultrasound pulse by quickly reducing the vibration. This results in a shorter pulse duration, which is important for improving axial resolution. Damping does not directly affect the pulse repetition frequency, beam focus, or beam penetration, although it can have indirect effects on image quality and resolution.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Axial resolution refers to the ability to distinguish two structures that are close to each other along the direction of the sound beam. It is determined by the spatial pulse length (SPL), which is the product of the number of cycles in a pulse and the wavelength. Shorter SPL means shorter pulse duration, which leads to better axial resolution. This is because shorter pulses allow for better separation of echoes from closely spaced structures.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

Comprehensive and Detailed Explanation From Exact Extract:

Elevational resolution (slice thickness resolution) refers to the ability to resolve structures perpendicular to the imaging plane and is directly determined by the beam’s thickness in that plane.

Principles and Instrumentation state:

"Elevational resolution is governed by the slice thickness, which depends on the transducer's beam profile and focusing in the elevational dimension."

Beam depth (A) affects penetration.

Beam uniformity ratio (C) is not related.

Beam width (D) affects lateral resolution.

Therefore, the correct answer is B: Beam thickness.

—

Frame rate in color flow Doppler is influenced by several factors, including the imaging depth. Decreasing the depth reduces the time it takes for sound waves to travel to the imaging area and back to the transducer. This allows for more frames to be captured per second, thereby increasing the frame rate. Higher frame rates improve temporal resolution, making it easier to visualize moving structures.

Comprehensive and Detailed Explanation From Exact Extract:

Output power directly affects the intensity of the ultrasound beam transmitted into the patient. Reducing output power lowers the risk of both thermal and mechanical bioeffects.

According to sonography instrumentation reference:

“Output power should be minimized following the ALARA (As Low As Reasonably Achievable) principle to reduce potential bioeffects while still obtaining diagnostic-quality images.”

Therefore, the correct answer is B: Output power.

78

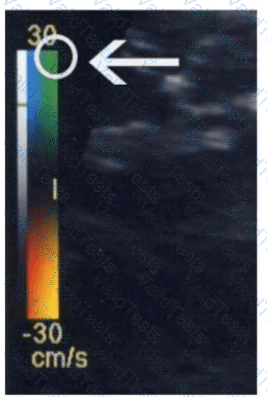

In this image, which characteristics of flow are represented by the upper right side of a variance mode color map?

A close-up of a screen Description automatically generated

A. Higher velocity, laminar with a positive Doppler shift

B. Higher velocity, laminar with a negative Doppler shift

C. Higher velocity, turbulent with a positive Doppler shift

D. Higher velocity, turbulent with a negative Doppler shift

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In variance mode color Doppler, colors are assigned based on both flow direction (Doppler shift polarity) and flow character (laminar vs turbulent). In the image:

The vertical color bar shows standard Doppler shifts: positive shifts (toward the transducer) are displayed at the top, and negative shifts (away from the transducer) at the bottom.

The variance mode adds horizontal color variation (from left to right), where the right side indicates increasing turbulence.

Thus, the upper right portion of the color bar indicates:

Positive Doppler shift (flow toward the transducer)

High velocity

Turbulent flow

According to sonography instrumentation reference:

“In variance mode, the vertical axis represents flow direction and velocity, while the horizontal axis represents flow variance (turbulence). The upper right corner indicates high-velocity turbulent flow toward the transducer.”

Therefore, the correct answer is C: Higher velocity, turbulent with a positive Doppler shift.

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution refers to the ability to distinguish two structures that are located along the path of the ultrasound beam. It is directly related to the spatial pulse length (SPL), which is the product of the number of cycles per pulse and the wavelength. A shorter SPL leads to better axial resolution.

According to sonography instrumentation reference:

“Axial resolution improves as spatial pulse length decreases because shorter pulses can better differentiate structures lying close together along the beam axis.”

Therefore, the correct answer is B: Spatial pulse length.

—

Attenuation refers to the reduction in the intensity of the ultrasound beam as it travels through tissue. Higher frequency ultrasound beams experience more attenuation because they are absorbed and scattered more than lower frequency beams. This is due to the fact that higher frequency waves have shorter wavelengths and interact more with the small particles in tissues, causing greater energy loss.

Comprehensive and Detailed Explanation From Exact Extract:

The matching layer is placed between the transducer’s piezoelectric element and the patient’s skin. Its primary function is to improve the transmission of sound energy into the body by reducing the acoustic impedance mismatch between the crystal and tissue, minimizing reflection at the transducer surface.

According to sonography instrumentation reference:

“The matching layer improves transmission of ultrasound energy by reducing impedance mismatch between the transducer and soft tissue, thus increasing the efficiency of sound energy transfer.”

Therefore, the correct answer is D: Increase sound transmission.

—

Lateral resolution refers to the ability to distinguish two structures that are side by side. It is dependent on the width of the ultrasound beam. By decreasing the depth of field, the beam width is reduced at any given point along the depth, which improves the lateral resolution. This is because a narrower beam can better distinguish between objects that are close together laterally.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.
