Mule Tracing Module and MDC:

The Mule Tracing module enhances logging by adding context-specific information to logs using Mapped Diagnostic Context (MDC).

MDC allows including additional metadata in logs, making it easier to trace and debug issues in the application.

Set Logging Variable Operations:

In Mule flows, before any Core Logger components, add Set logging variable operations from the Mule Tracing module.

This ensures that the contextual information is set before logs are written.

Configuring log4j2.xml:

Update the log4j2.xml file to change the appender's pattern layout to include %MDC placeholders.

Assign the appender to either a Logger or the Root element to ensure that logs across the application include the MDC-enriched information.

Improving Throughput and Lowering Latency:

Using MDC with %MDC placeholders ensures that enriched logging does not significantly impact performance.

This setup improves logging detail while maintaining efficient message processing.

References:

MuleSoft Documentation on Mule Tracing: Mule Tracing Module

Log4j2 Documentation on MDC: Log4j2 MDC

To support the company's goals of unlocking key systems and data, quickly deploying scalable APIs, and connecting to on-premises systems, while also preparing for future migrations, the best runtime deployment option is using Runtime Fabric on self-managed Kubernetes. Here's why:

Scalability: Kubernetes is designed to scale applications easily and efficiently. By deploying Mule runtimes on a self-managed Kubernetes cluster, the company can dynamically scale its APIs based on demand, ensuring performance and reliability.

Flexibility: Running on self-managed Kubernetes allows the company to have control over the infrastructure. They can customize the environment to meet their specific needs, integrate with existing on-premises systems, and support their microservices architecture running in Docker containers.

Future-Proofing: Kubernetes supports hybrid and multi-cloud deployments, making it easier to migrate workloads between different environments as needed. This aligns with the company's goal of being able to migrate their systems as part of their strategic approach.

Efficiency: By leveraging Kubernetes, the company can automate deployment, scaling, and management of containerized applications, reducing the burden on IT and DevOps teams.

References:

MuleSoft Documentation on Runtime Fabric: https://docs.mulesoft.com/runtime-fabric/1.9/

Kubernetes Documentation: https://kubernetes.io/docs/home/

Explanation

* Mule Domain Project is ONLY available for customer-hosted Mule runtimes, but not for Anypoint Runtime Fabric

* Mule domain project is available for Hybrid and Private Cloud (PCE). Rest all provide application isolation and can't support domain project.

What is Mule Domain Project?

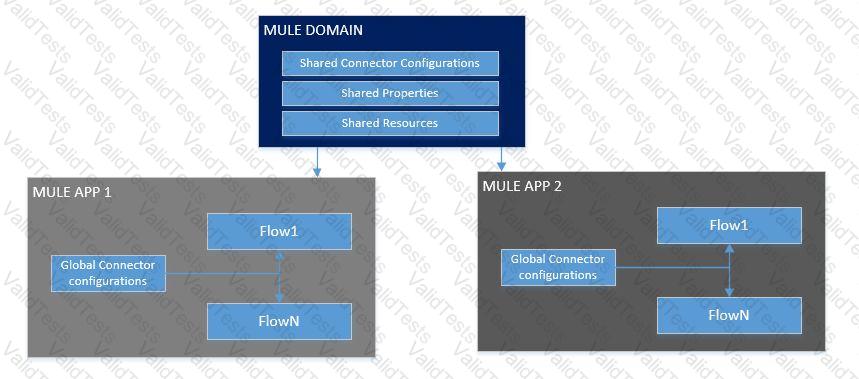

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

Create a Mule domain project.

Add the Database connector and its configuration to the domain project.

Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

MuleSoft Documentation on Domain Projects

Best Practices for Reusable Configuration in MuleSoft

To determine when permissions were last changed for an Anypoint Platform user, the system administrator should use the Audit Logging component. Audit Logging in Anypoint Platform captures detailed logs of various activities, including changes to user permissions, login attempts, and other significant actions. These logs provide a historical record that administrators can review to track changes and ensure compliance with security policies.

Other components like Anypoint Monitoring, Anypoint Studio, and Mule Stack Traces are used for monitoring application performance, development, and debugging, respectively, but they do not provide specific information about user permission changes.

References

MuleSoft Documentation on Audit Logging

Anypoint Platform User Management

According to MuleSoft's surveys of global IT leaders, a common cause of IT project failure is a lack of alignment around business outcomes. When IT projects do not have clear business objectives or fail to align with the strategic goals of the organization, they are more likely to face challenges and fail to deliver value. Ensuring that IT initiatives are closely tied to business goals and have stakeholder buy-in is crucial for their success.

References:

Why IT Projects Fail

Aligning IT and Business Strategies

Explanation

* Resilience testing is a type of software testing that observes how applications act under stress. It's meant to ensure the product's ability to perform in chaotic conditions without a loss of core functions or data; it ensures a quick recovery after unforeseen, uncontrollable events.

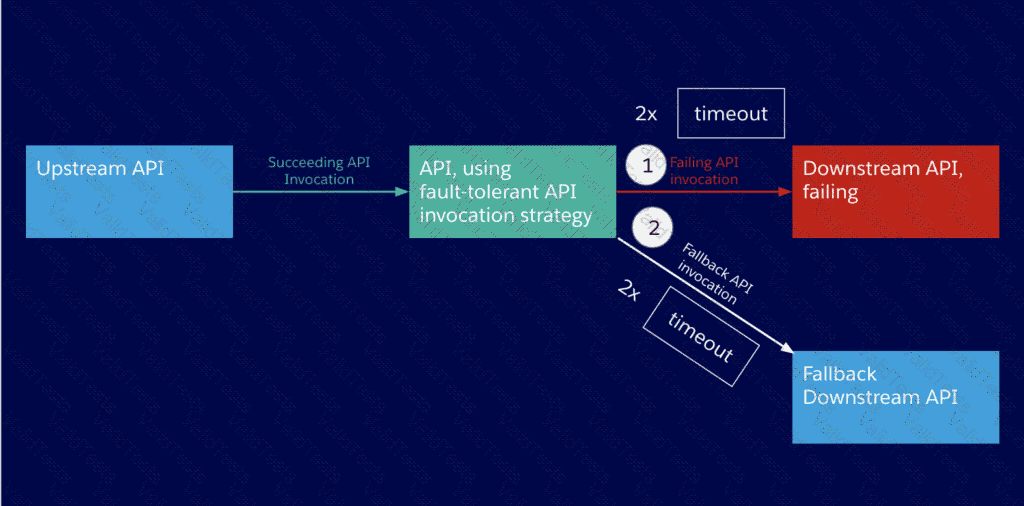

* In case an API invocation fails — even after a certain number of retries — it might be adequate to invoke a different API as a fallback. A fallback API, by definition, will never be ideal for the purpose of the API client, otherwise it would be the primary API.

* Here are some examples for fallback APIs:

- An old, deprecated version of the same API.

- An alternative endpoint of the same API and version (e.g. API in another CloudHub region).

- An API doing more than required, and therefore not as performant as the primary API.

- An API doing less than required and therefore forcing the API Client to offer a degraded service, which is still better than no service at all.

* API clients implemented as Mule applications offer the ‘Until Successful Scope and Exception’ strategies at their disposal, which together allow configuring fallback actions such as a fallback API invocation.

* All HTTP response status codes within the 3xx category are considered redirection messages. These codes indicate to the user agent (i.e. your web browser) that an additional action is required in order to complete the request and access the desired resource

Diagram Description automatically generated

Hence correct answer is Redirect client requests through an HTTP 303 temporary redirect status code to the fallback API whenever the Order API is unavailable

Explanation

* "Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ" is not a feasible option

* "Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network" - It is risk for sensitive data. - Even if you whitelist the database IP on your app, your app wont be able to connect to the database so this is also not a feasible option

* "An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network" Adding one VPC with a DLB for each backend system also makes no sense, is way too much work. Why would you add a LB for one system.

* Correct answer: "An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network"

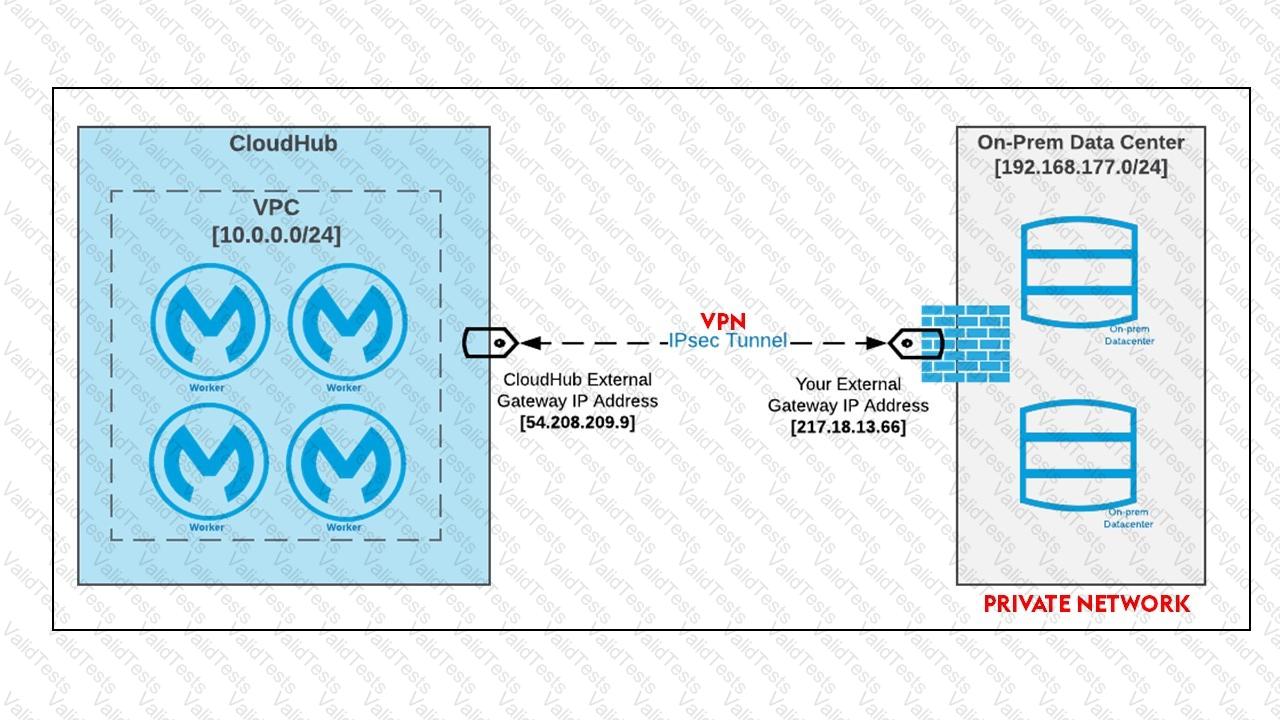

IPsec Tunnel You can use an IPsec tunnel with network-to-network configuration to connect your on-premises data centers to your Anypoint VPC. An IPsec VPN tunnel is generally the recommended solution for VPC to on-premises connectivity, as it provides a standardized, secure way to connect. This method also integrates well with existing IT infrastructure such as routers and appliances. Reference: https://docs.mulesoft.com/runtime-manager/vpc-connectivity-methods-concept

Diagram Description automatically generated

Explanation

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU Explanation : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don’t guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don’t guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU

In an HTTP/1.1-compliant web service, the class of HTTP response status codes that indicates successful client requests is the 2xx class. These status codes signify that the client's request was successfully received, understood, and accepted by the web service. Common 2xx status codes include:

200 OK: The request was successful.

201 Created: The request was successful and a new resource was created.

202 Accepted: The request has been accepted for processing, but the processing is not yet complete.

Other status code classes like 3xx (redirection), 4xx (client errors), and 5xx (server errors) indicate different types of responses and do not signify successful request processing.

References

IETF RFC 2616: HTTP/1.1 Specification

HTTP Status Code Definitions
