Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

MuleSoft Anypoint MQ Documentation

Cloud vs. On-Premises Messaging Solutions

To automate the promotion and deployment of API Manager policies as part of a CI/CD process, an organization can use the Anypoint CLI (Command Line Interface). The Anypoint CLI provides a set of commands to interact with various components of the Anypoint Platform, including API Manager.

Using the Anypoint CLI, you can:

Apply policies to API instances.

Promote APIs and their associated policies across different environments.

Script these actions as part of the CI/CD pipeline to ensure consistency and automation in managing API policies.

Other tools like the MUnit Maven plugin, Mule Maven plugin, and Runtime Manager agent do not provide direct capabilities to manage API Manager policies.

References

MuleSoft Anypoint CLI Documentation

Automating API Management with Anypoint CLI

Explanation

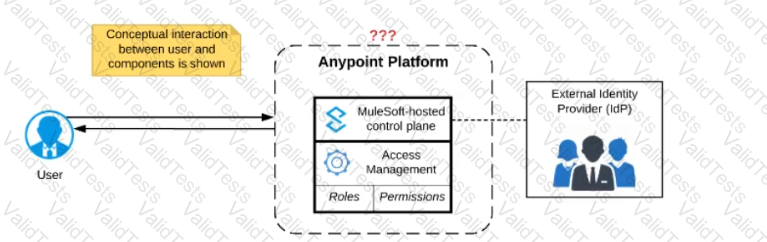

* By default, Anypoint Platform performs its own user management

– For user management, one external IdP can be integrated with the Anypoint Platform organization (note: not at business group level)

– Permissions and access control are still enforced inside Anypoint Platform and CANNOT be controlled via the external Identity Provider * As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * You can map users in a federated organization’s group to a role which also gives the flexibility of controlling the business group within Anypoint Platform to which the user belongs to. Also user can nbe removed from external identity management system when they no longer work for the organization. So they wont be able to authenticate using SSO to login to Anypoint Platform. * Using external identity we can no change permissions of a particular role in Mulesoft Anypoint platform.

* So Correct answer is Assigning Anypoint Platform permissions to a role

Parallel Execution:

In a Scatter-Gather scope, all routes are executed in parallel. This allows multiple operations to be performed simultaneously, which can improve performance and efficiency when dealing with independent tasks.

Transaction Management:

When Scatter-Gather operates within a local transaction, all database operations performed in parallel routes are part of the same transaction context.

Error Handling and Rollback:

If any error occurs within any of the parallel routes inside the Scatter-Gather scope, it triggers a rollback of all the database operations performed within the transaction. This ensures data consistency and integrity.

References:

MuleSoft Documentation on Scatter-Gather

Transaction management in MuleSoft

=========================

In a microservices architecture, a service mesh manages the communication between microservices. This involves handling service discovery, load balancing, failure recovery, metrics, and monitoring. Service meshes also provide more complex operational requirements like A/B testing, canary releases, rate limiting, access control, and end-to-end authentication. By abstracting these functionalities away from individual microservices, a service mesh allows developers to focus on business logic while ensuring reliable and secure inter-service communication.

References:

Understanding Service Mesh

Service Mesh for Microservices

When a Mule application uses batch job scope to process large datasets and is deployed on multiple CloudHub workers without persistence queues enabled, the following scenario occurs if a worker crashes:

Batch Job Scope: Batch jobs are designed to handle large datasets by splitting the work into records and processing them in parallel.

Non-Persistent Queues: When persistence is not enabled, the state of the batch processing is not stored persistently. This means that if a worker crashes, the state of the in-progress batch job is lost.

Worker Crash Consequence:

When a worker crashes, the records that were being processed by that worker are not tracked persistently.

As a result, when another worker (or the same worker after a restart) picks up the job, it does not have the previous state information.

This leads to the batch job starting from the beginning and reprocessing all records from scratch, causing duplicate processing of records that were already processed before the crash.

This behavior can cause issues such as duplicate data in Salesforce CRM and inefficiencies in processing.

References

MuleSoft Batch Processing

MuleSoft CloudHub Workers

Understanding the Operations:

The Finance operation can only look up one account record at a time.

The Audit operation can only insert one account record at a time.

Parallel For-Each Scope:

Finance Operation: Use a Parallel For-Each scope to process multiple account lookups simultaneously.

This improves performance by allowing concurrent processing of account records, leveraging parallelism.

Async Scope:

Audit Operation: Use an Async scope to handle the insertion of account records independently.

The Async scope ensures that the Audit operation does not block the main processing flow, allowing other processes to continue without waiting for the Audit operation to complete.

Performance Optimization:

Combining Parallel For-Each for the Finance operation and Async scope for the Audit operation maximizes throughput.

This approach ensures efficient use of resources and reduces latency by parallelizing account lookups and asynchronously handling audit inserts.

References:

MuleSoft Documentation on Scopes: Mule Scopes

MuleSoft Best Practices for Performance: Performance Best Practices

To achieve efficient caching and reduce redundant database transactions, the following strategy can be implemented:

On Table Row Listener: Implement an "On Table Row" trigger on the employees' table. This trigger will monitor changes (inserts, updates, deletes) in the employee records.

Invalidate Cache: Upon detecting changes in the employees' table, the trigger will call a flow to invalidate the current cache.

Object Store for Caching: Utilize MuleSoft's object store to cache the employee data. This store can hold the data for quick retrieval.

Set Expiration Interval: Configure the expiration interval for the cached data to ensure it is cleared when necessary. For this scenario, since we are invalidating cache on actual data changes, setting the expiration interval to empty can be suitable.

Return Cached Data: If there are no updates, the cached response is returned, reducing database load.

References:

MuleSoft Documentation on Object Store

Caching Strategies

When configuring the TLS context for an HTTP request to the Google Maps API, the primary goal is to ensure that the Mule application can establish a secure connection. Here’s a detailed explanation of the necessary steps:

Download Google Public Certificate:

Open a browser and navigate to the Google Maps API URL (e.g., https://maps.googleapis.com).

Click on the lock icon in the address bar and view the certificate details.

Export the certificate, usually in a .cer or .crt format.

Generate JKS File from Certificate:

Use a tool like keytool (which comes with the Java Development Kit) to import the downloaded certificate into a Java KeyStore (JKS) file.

keytool -importcert -file google.cer -keystore truststore.jks -alias google

Add JKS File to Truststore:

In your Mule application, configure the HTTP Request Connector with the generated JKS file as the Truststore in the TLS context.

Configure HTTP Request Connector:

Ensure the HTTP Request Connector references this Truststore configuration.

By completing these steps, your Mule application will trust the Google Maps API server’s certificate, allowing for secure communication.

References

MuleSoft Documentation: Configuring TLS

Google Maps API Documentation

Requirement Analysis: The organization wants to standardize dependencies across all new and ongoing MuleSoft projects to minimize the impact of frequent plugin version upgrades and external plugin project dependencies.

Solution: Creating a parent POM (Project Object Model) file with all required dependencies and referencing it in each application's POM.xml file is the best practice.

Implementation Steps:

Create Parent POM:

Define a parent POM.xml file that includes all common dependencies, plugin versions, and configurations.

Example of a parent POM.xml:

pom</artifactId> 1.0.0 pom org.mule.runtime <artifactId>mule-core-extensions-maven-plugin</artifactId> 1.0.0

Reference Parent POM:

In each application's POM.xml file, reference the parent POM.

Example of a child POM.xml referencing the parent POM:

4.0.0 com.example <artifactId>parent-pom</artifactId> 1.0.0 <artifactId>child-application</artifactId> 1.0.0

Build and Test: Ensure that all applications build successfully with the parent POM and test them to confirm that the common dependencies are correctly applied.

Advantages:

Consistency: Ensures all projects use the same versions of dependencies, reducing the risk of conflicts.

Manageability: Simplifies dependency management by centralizing it in one parent POM file.

Scalability: Makes it easier to update dependencies across multiple projects by changing only the parent POM.

References

MuleSoft Documentation on Managing dependencies with Maven

Apache Maven Documentation on POM Reference
