Questions # 41:

An engineer uses Postman and YANG to configure a router with:

    OSPF process ID 400

    network 192.168.128.128/25 enabled for Area 0

Which get-config reply verifies that the model set was designed correctly?

Options:

A.

Text Description automatically generated

B.

Text Description automatically generated

C.

Text Description automatically generated

D.

Text Description automatically generated with medium confidence

Expert Solution
Questions # 42:

An engineer must connect a new remote site to an existing OSPF network. The new site consists of two low-end routers, one for WAN, and one for LAN. There is no demand for traffic to pass through this area. Which area type does the engineer choose to provide minimal router resources utilization, while still allowing for full connectivity to the rest of the network?

Options:

A.

not so stubby

B.

totally not so stubby

C.

totally stubby area

D.

stubby area

Expert Solution
Questions # 43:

Question # 43

Refer to the exhibit. An architect is designing a hierarchical ISIS solution for a customer with these requirements:

    Routers will double In all areas within the next 24 months.

    Link flaps within areas 20 and 30 must not impact the backbone area.

    Traffic originating from A201 and A302 routers must connect to application servers in the backbone.

Which design must the architect select?

Options:

A.

C201 Level 1/2, A301 Level 1/2 and A102 Level 1/2

B.

C101 Level 1/2. A201 Level 1, and A101 Level 2

C.

C102 Level 2. A202 Level 2, and A102 Level 1

D.

C302 Level 2. A302 Level 1/2. and A101 Level 2

Expert Solution
Questions # 44:

A customer requested that a guaranteed service line be enabled for a manufacturing business in different countries. On the customer side, the QoS-aware application is used to process large data chunks. The application cannot tolerate drops and latency should be as low as possible. Which QoS model must an engineer employ to use the minimum required resources on the ISP network nodes?

Options:

A.

Implement a group-based QoS strategy with FECs enabled

B.

Enable a flow-based QoS strategy with queuing elements.

C.

Implement an end-to-end QoS strategy with SLA.

D.

Configure a domain-based QoS strategy with PHB behavior.

Expert Solution
Questions # 45:

Refer to the exhibit.

Question # 45

An engineer must design a WAN solution so that ISP-1 is always preferred over ISP-2. The path via ISP-2 is

considered as a backup and must be used only when the path to ISP-1 is down. Which

solution must the engineer choose?

Options:

A.

R1:

- Routes advertised to ISP-1: 0x AS-path prepend

- Routes received from ISP-1: HIGH local-preference

- Routes advertised to R2: no action

- Routes received from R2: community NO-EXPORT

R2:

- Routes advertised to ISP-2:5x AS-path prepend

- Routes received from ISP-2: LOW local-preference

- Routes advertised to R1: community NO-ADVERTISE

- Routes received from R1: no action

B.

R1:

- Routes advertised to ISP-1: 0x AS-path prepend

- Routes received from ISP-1: HIGH local-preference

- Routes advertised to R2: community NO-EXPORT

- Routes received from R2: no action

R2:

- Routes advertised to ISP-2: 5x AS-path prepend

- Routes received from ISP-2: LOW local-preference

- Routes advertised to R1: no action

- Routes received from R1: no action

C.

R1:

- Routes advertised to ISP-1: 0x AS-path prepend

- Routes received from ISP-1: LOW local-preference

- Routes advertised to R2: community NO-ADVERTISE

- Routes received from R2: no action

R2:

- Routes advertised to ISP-2: 5x AS-path prepend

- Routes received from ISP-2: HIGH local-preference

- Routes advertised to R1: no action

- Routes received from R1: community NO-ADVERTISE

D.

R1:

- Routes advertised to ISP-1: 5x AS-path prepend

- Routes received from ISP-1: LOW local-preference

- Routes advertised to R2: community NO-ADVERTISE

- Routes received from R2: no action

R2:

- Routes advertised to ISP-2: 0x AS-path prepend

- Routes received from ISP-2: HIGH local-preference

- Routes advertised to R1: community NO-EXPORT

- Routes received from R1: no action

Expert Solution
Questions # 46:

Question # 46

Refer to the exhibit. An architect working for a service provider with an employee ID: 4763:44:876 must design a Layer 2 VPN solution that supports:

    transparency of service provider devices

    direct communication between CE routers attached to the same VLAN

Which solution must the design include?

Options:

A.

multiple VPWS

B.

single VPLS

C.

single VPWS

D.

multiple VPLS

Expert Solution
Questions # 47:

An engineer must design a scalable QoS architecture that allows the separation of the traffic into classes on predefined business requirements. The design must also utilize the differentiated services code points as the QoS priority descriptor value and support at least 10 levels of classification. Which QoS technology should the engineer include in the design?

Options:

A.

RSVP

B.

Diffserv

C.

Best effort

D.

Interserv

Expert Solution
Questions # 48:

An engineer uses Postman and YANG to configure a router with:

    OSPF process ID 200

    network 172.16.10.128/26 enabled for Area 0

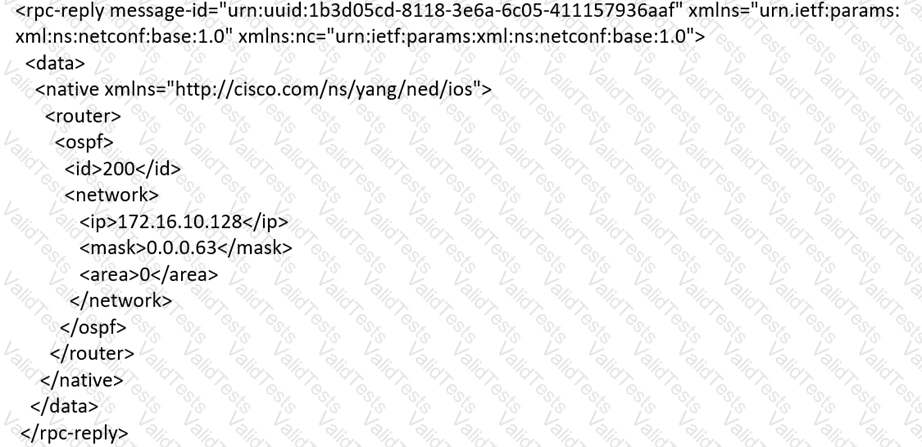

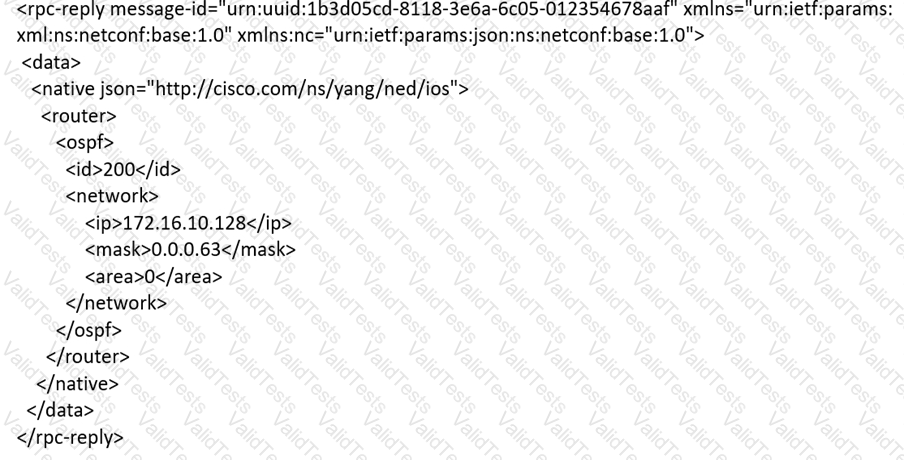

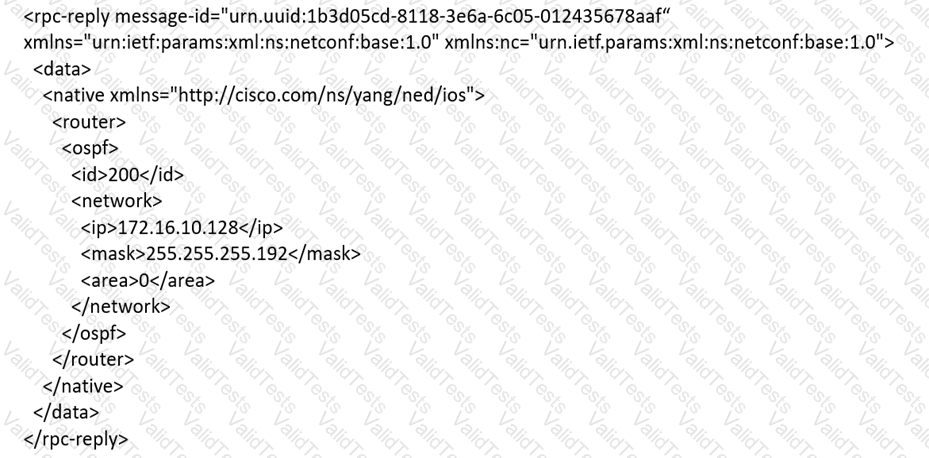

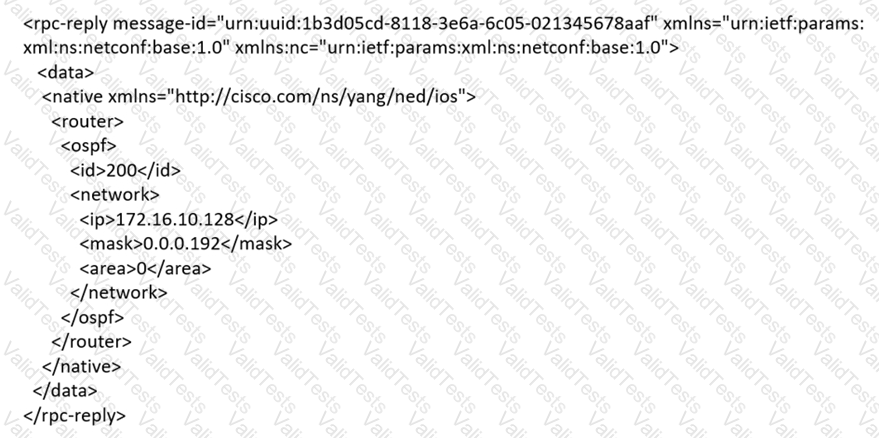

Which get-config reply verifies that the model set was designed correctly?

Options:

A.

Text, letter Description automatically generated

B.

Graphical user interface, text, letter, email Description automatically generated

C.

Text, letter Description automatically generated

D.

Text, letter Description automatically generated

Expert Solution
Questions # 49:

What are the two purpose of the RPF check in multicast routing?

Options:

A.

to ensure that multicast packets are forwarded if they arrived on the interface used to route traffic back to the source address

B.

to ensure that multicast packets are forwarded if they arrived on the interface used to route traffic to the destination address

C.

to ensure that multicast packets, no matter the interface they arrived on. are forwarded out all interfaces

D.

to ensure that multicast packets are dropped if they arrived on the interface used to route traffic to the destination address

E.

to ensure that multicast packets are dropped if they arrived on the interface used to route traffic back to the source address

Expert Solution
Questions # 50:

Question # 50

Refer to the exhibit. An engineer Is designing a multicampus Layer 3 Infrastructure using EIGRP as the routing protocol. The design must provide quick replies to queries In the event of a downlink, prevent unnecessary queries, and ensure that traffic does not unnecessarily transit the access layer. Which two actions must the engineer take for the network design? (Choose two.)

Options:

A.

Configure core layer switches as stub routers.

B.

Configure distribution layer switches to summarize routes to the core layer.

C.

Configure access layer switches as stub routers.

D.

Configure access layer and core layer switches as stub routers.

E.

Configure access layer switches to summarize routes to the distribution layer.

Expert Solution
