BIDIR-PIM is the correct multicast mode for a video conferencing environment with numerous dispersed senders and receivers. Bidirectional PIM is designed for many-to-many multicast applications where receivers may also transmit and where maintaining per-source trees would create unnecessary state and control-plane overhead. Instead of building a shortest-path tree for every source, BIDIR-PIM uses a shared tree rooted at the rendezvous point and forwards traffic bidirectionally. This makes it attractive for collaborative applications and conferencing scenarios with many active participants. MP-BGP can carry multicast VPN or multicast routing information in service-provider designs, but it is not itself the multicast forwarding mode for this requirement. MSDP is used to exchange source information between PIM-SM domains, not to optimize many-to-many forwarding within the multicast design. IGMPv2 handles host membership signaling on local segments and does not provide the routed multicast mode. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, video conferencing multicast, PIM design.

In Cisco SD-Access, endpoints inside the fabric reach external resources through fabric border nodes. The fabric overlay uses virtual networks that map to VRFs, and the border node provides the boundary between the SD-Access fabric and external Layer 3 networks, shared services, WAN, data center, or Internet connectivity. When traffic sourced inside the fabric is destined outside the fabric, the border node de-encapsulates VXLAN traffic and forwards it into the appropriate external routing domain. The answer choice stating that fabric borders use VRFs to map VNs to VRFs best captures that design function. A fusion router can be used for inter-VN communication or shared services, but it is not how every endpoint exits the fabric. SD-Access transit links are used to connect fabric sites or carry encapsulated traffic between fabrics, not simply to reach ordinary external resources. A fabric edge encapsulates and de-encapsulates traffic for locally attached endpoints, but the fabric border is the role that connects the fabric to outside networks. Therefore, fabric border nodes are the correct design component for external resource access.

BIDIR-PIM is the correct multicast solution for interactive many-to-many communication with many sources when source trees must not be used. Bidirectional PIM is specifically designed for applications where receivers can also be senders and where the number of sources can grow without creating per-source multicast state throughout the network. Instead of building shortest-path trees for each source, BIDIR-PIM uses a shared tree rooted at the rendezvous point and forwards traffic bidirectionally along that tree. This reduces multicast routing-table growth and control-plane churn in environments with many active sources. PIM dense mode is not appropriate because it floods and prunes traffic and is inefficient at scale. Any-source multicast with PIM-SM may create source trees, which violates the requirement. MSDP is used to exchange source information between PIM-SM domains and is not itself the forwarding mode for this campus or WAN multicast design. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, multicast source scaling, PIM design.

A logical topology that virtually connects devices over an arbitrary physical network is an overlay. In Cisco SD-Access, the underlay provides basic IP reachability between fabric nodes, while the overlay creates the logical network used by endpoints, virtual networks, and policy segmentation. The overlay is not constrained to the exact physical cabling topology; instead, it uses encapsulation and control-plane mapping to carry user traffic across the routed fabric. Cisco SD-Access uses LISP in the control plane for endpoint-to-location mapping and VXLAN in the data plane for encapsulation. This allows the fabric to present consistent logical connectivity even when the physical network is built from routed links and different infrastructure layers. The data plane is the forwarding mechanism, the control plane resolves location information, and the underlay is the physical and routed transport. The logical topology built on top of those components is the overlay. Reference topics: Cisco SD-Access overlay, underlay, VXLAN, LISP, fabric logical topology.

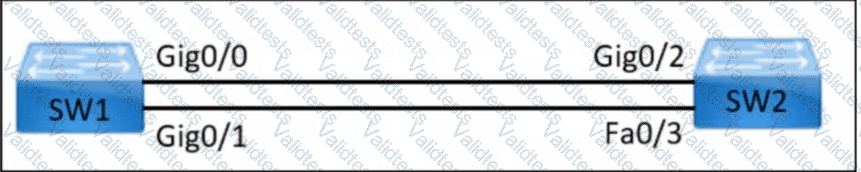

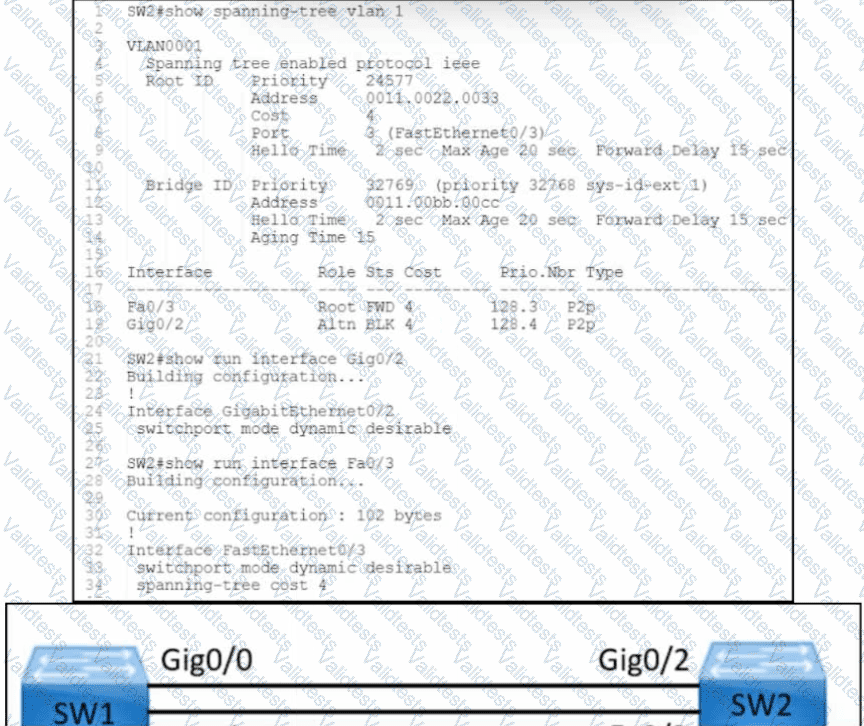

The selected command pair is appropriate because the issue is that GigabitEthernet0/2 on SW2 is not becoming the root port as expected. In spanning-tree design, the root port is selected based on the lowest root path cost, then upstream bridge ID, then port ID when necessary. If the wrong port is selected, the engineer must adjust the local spanning-tree parameters on SW2 so that the intended interface has the best path toward the root bridge. Typical corrective commands lower the spanning-tree cost or set the port priority on the desired interface or VLAN instance. The correct answer pair is therefore the combination that changes the STP decision variables for Gig0/2 rather than changing unrelated features such as PortFast, BPDU Guard, or VLAN trunking. PortFast is unsafe on switch-to-switch links, and protection features do not make an interface more attractive as a root port. The fix must influence STP path selection while keeping the topology loop-free. Reference topics: STP root port election, path cost, port priority, root bridge path selection, Catalyst Layer 2 troubleshooting.

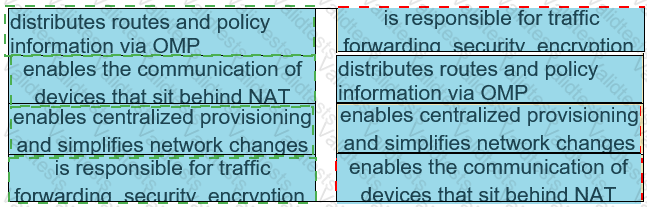

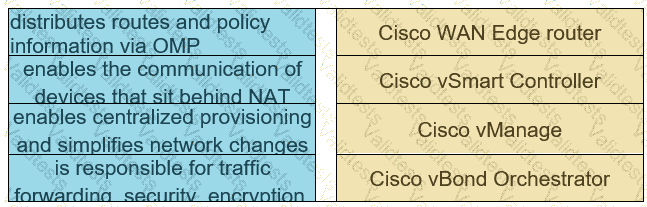

WAN Edge: traffic forwarding, security, encryption, QoS, and routing protocols; vSmart: distributes routes and policy information via OMP; vManage: centralized provisioning and simplified network changes; vBond: communication for devices behind NAT.

The Cisco SD-WAN component mapping follows the normal separation of management, control, orchestration, and data-plane roles. WAN Edge routers are the data-plane devices at branches, data centers, campuses, or cloud edges. They forward user traffic and apply routing, QoS, encryption, segmentation, and security services. vSmart controllers provide the centralized control plane and distribute reachability and policy information with OMP, including prefixes, TLOCs, and service routes. vManage is the management-plane system; it supplies centralized provisioning, device templates, policy configuration, software lifecycle functions, monitoring, and operational visibility. vBond operates as the orchestration-plane component, authenticating devices during onboarding and helping devices behind NAT discover and establish the correct secure control connections. This separation is critical in enterprise design because each component has different redundancy, reachability, and scale requirements. The architect should not blur vManage and vSmart roles: vManage configures and monitors, while vSmart computes and distributes control policy. Reference topics: Cisco Catalyst SD-WAN architecture, WAN Edge data plane, vSmart OMP, vManage management plane, vBond orchestration.

is responsible for traffic forwarding, security, encryption, QoS,and routing protocols

distributes routes and policy information via OMP

enables centralized provisioning and simplifies network changes

enables the communication of devices that sit behind NAT

Dynamic NAT-PT is the correct selection when IPv6 hosts in an IPv6 island must access IPv4-only servers and services. NAT-PT translates between IPv6 and IPv4 packet headers and allows IPv6-only nodes to communicate with IPv4-only destinations by dynamically creating translation state. In this scenario, IPv6 hosts need access to file servers and DNS services in an IPv4 network, so a dynamic translation mechanism is required. Stateless NAT66 and stateful NAT66 are IPv6-to-IPv6 translation mechanisms and do not connect IPv6 hosts to IPv4-only resources. Static NAT-PT would be appropriate for fixed one-to-one mappings where specific hosts are permanently mapped, but the question describes general access from an IPv6 island to IPv4 services, making dynamic NAT-PT the better match. In modern designs, NAT64 and DNS64 are commonly preferred successors, but within the answer choices NAT-PT is the IPv6-to-IPv4 transition mechanism. Reference topics: IPv6 transition, NAT-PT, IPv6-to-IPv4 translation, DNS access, dual-protocol migration.

The company must configure a summary route on R1. The branch routers must remain normal EIGRP routers, and auto-summary is not allowed, so the scalable design choice is manual summarization at the hub. Cisco EIGRP documentation states that manual summarization can be configured on an interface using the ip summary-address eigrp command and can summarize routes on almost any bit boundary. In a DMVPN hub-and-spoke topology, a hub summary reduces the number of individual routes advertised to branches, limits routing-table growth, and helps contain EIGRP queries. It also keeps branch configuration simple because the branches do not need to be converted to stub routers to meet this specific requirement. Disabling split horizon is a common DMVPN Phase 2 consideration when the hub must advertise spoke routes back out the same multipoint tunnel interface, but it does not summarize HQ routes. A multipoint interface is already implied by DMVPN, and disabling the SIA timer is not a design solution. Reference topics: EIGRP manual summarization, DMVPN hub design, no auto-summary, query containment.

Improved application experience and optimized cloud connectivity are two principal advantages of Cisco SD-WAN technology. Cisco SD-WAN separates the control plane from the data plane and applies centralized policy to choose the best available transport path for business applications. Features such as application-aware routing, performance measurement, path quality monitoring, forward error correction, packet duplication for selected traffic, and QoS integration help improve user experience for voice, video, SaaS, and other critical applications. SD-WAN also improves cloud connectivity by allowing branches to access trusted SaaS and IaaS resources directly instead of backhauling all traffic through a central data center. Cloud OnRamp functions further simplify connectivity to cloud-hosted workloads and SaaS applications. Easier deployment and proactive management may be operational benefits in some designs, but the strongest technology advantages in this answer set are application experience and optimized cloud access. Consistent connectivity is too generic and does not identify a specific SD-WAN design value. Reference topics: Cisco SD-WAN benefits, application-aware routing, direct internet access, Cloud OnRamp, SaaS optimization.

A single-homed WAN design is appropriate for two small branch offices when cost is the main concern, routing overload must be avoided, and occasional downtime is acceptable. Single-homed connectivity uses one WAN connection from the branch to the provider or headquarters. It is the simplest and least expensive model because it minimizes circuits, routers, routing adjacencies, and failover complexity. Dual-homed or multihomed designs improve availability, but they add cost and operational overhead through additional links, devices, routing policy, and monitoring. Dual multihomed designs are the most resilient but clearly exceed the requirement for a small cost-sensitive branch. A single multihomed design provides some provider or link diversity, but it is still more complex than necessary if the customer accepts some downtime. In Cisco WAN design, the correct topology must match the business availability requirement; not every site justifies redundant circuits. Reference topics: WAN topology selection, single-homed branch design, cost versus availability, routing simplicity, branch connectivity.
